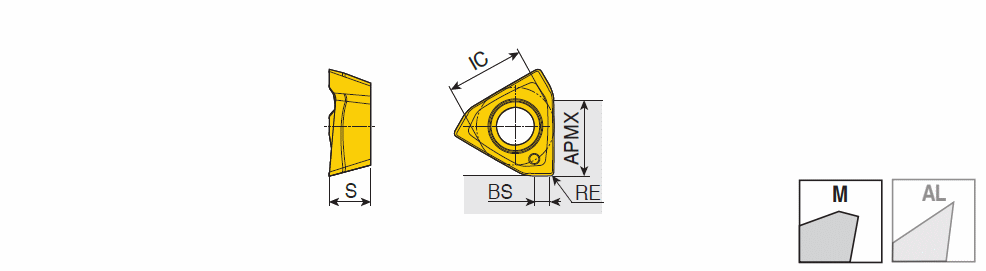

3PHT 06-M : High positive inserts 3PHT with three helical cutting edges for 90° shoulders & general machining

Designation	IC	RE	BS	S	APMX	S1	CE	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
3PHT 060304R-M	5.30	0.40	1.00	2.80	4.70	6.00~	3~	MR-3P06 ~	1.00	4.00	0.100	0.040	M6 ~	T ~	71DD68D8446CE ~	G60 ~	M ~	TT2510~	IS$$405658693531035 ~	3PK(H)T 06 ~	0~	6256521		1		TT2510
