AOMT 03-C30/C45 : Chamfering inserts for DRILLRUSH head changeable drills with pre-thread hole

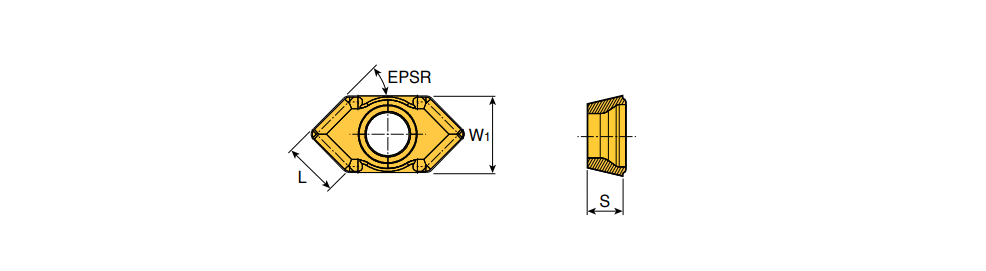

Designation	W1	L	S	EPSR	S1	CB	SC	ClssID	GRDMFG	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
AOMT 030204-C45	4.00	2.80	1.59	45.0	0.00~	~	~	~	TT9080~	6210976		1		TT9080
AOMT 030204-C30	4.00	4.00	1.59	30.0	0.00~	~	~	~	TT9080~	6210974		1		TT9080

Used for specially tailored tools
