4S-TEF-B-09V : CHASE-V-QUAD_Base units for head changeable extended flute cutter

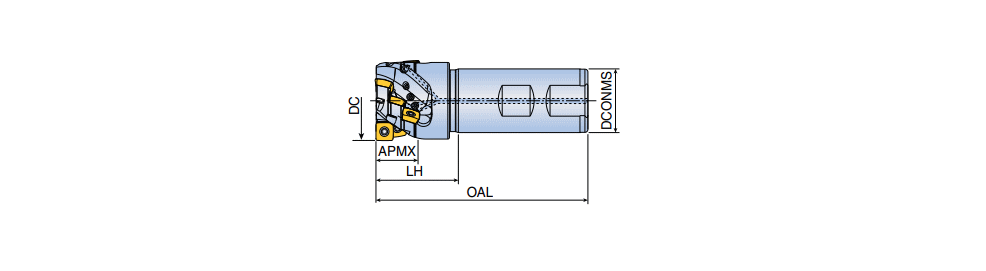

Designation	Tool sty	DC	NOF	CICT	DCONMS	OAL	LH	APMX	CSP		S1	Shank	Rd	e	PD	Insert	K	ClssID	MIID	CCTMS	CCFMS	IIC	LTA	GICAT	GIREM	giic	GICODE
4S-TEF-D40B-21-W32-09V-3F	EXTENDED FLUTE ~	40.00	3	9	32.00	106.40	41.4	21.00	O	0.60	9.00~	W ~	0.00~	~	C ~	CVQ-SV09 ~	90.0~	71E01A05D27A8 ~	SVKT 093808-ML	ZYL ~	10 ~	IS$$546191905737048 ~	46.40~	6231587		0

Front head ordered seperately
Note: For use, both the front head and base unit must be connected
