TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

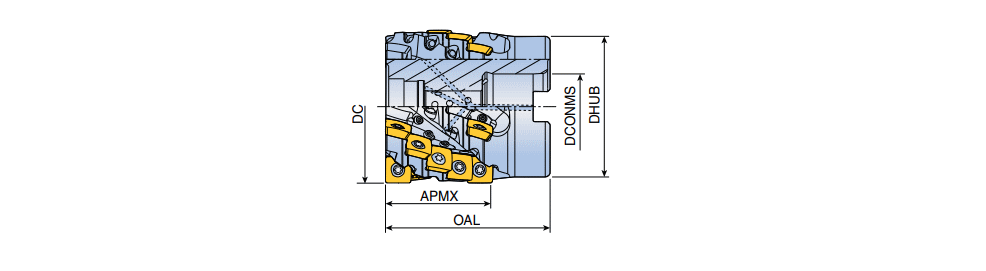

4S-TES-B-R-09V/11V : CHASE-V-QUAD_Base units for head changeable extended flute cutter

Designation	Tool sty	S1	DC	NOF	CICT	DCONMS	DHUB	OAL	APMX	CSP	Arbor		Mtg. Ref	D3	Rd	K	R/L	PD	Insert	ClssID	MIID	CCTMS	CCFMS	IIC	LTA	GICAT
4S-TES-D40B-21-16R-09V-3F	EXTENDED FLUTE ~	9.00~	40.00	3	9	16.00	38.00	41.40	20.00	O	A	0.20	SH M8X45-C	0.00~	0.00~	90.0~	~	C ~	SVKT 093808-ML ~	71E01A05B627B ~	SVKT 093808-ML	FDA ~	02 ~	IS$$546191905737048 ~	41.40~	6247390
4S-TES-D50B-27-22R-09V-5F	EXTENDED FLUTE ~	9.00~	50.00	5	20	22.00	45.00	49.40	27.00	O	A	0.40	LH M10X60-C	0.00~	0.00~	90.0~	~	C ~	SVKT 093808-ML ~	71E01A05B627B ~	SVKT 093808-ML	FDA ~	02 ~	IS$$546191905737048 ~	49.40~	6247391
4S-TES-D63B-34-27R-09V-6F	EXTENDED FLUTE ~	9.00~	63.00	6	30	27.00	58.00	56.40	34.00	O	A	0.70	LH M12X70-C	0.00~	0.00~	90.0~	~	C ~	SVKT 093808-ML ~	71E01A05B627B ~	SVKT 093808-ML	FDA ~	02 ~	IS$$546191905737048 ~	56.40~	6247395
4S-TES-D50B-34-22R-11V-4F	EXTENDED FLUTE ~	11.00~	50.00	4	16	22.00	45.00	57.80	34.00	O	A	0.50	SH M10X60-C	0.00~	0.00~	90.0~	~	C ~	SVKT 114508-ML ~	71E01A05B627B ~	SVKT 114508-ML	FDA ~	02 ~	IS$$678247058514781 ~	57.80~	6340887
4S-TES-D63B-43-27R-11V-5F	EXTENDED FLUTE ~	11.00~	63.00	5	25	27.00	58.00	67.80	43.00	O	A	1.00	SH M12X70-C	0.00~	0.00~	90.0~	~	C ~	SVKT 114508-ML ~	71E01A05B627B ~	SVKT 114508-ML	FDA ~	02 ~	IS$$678247058514781 ~	67.80~	6340890
4S-TES-D80B-59-32R-11V-6F	EXTENDED FLUTE ~	11.00~	80.00	6	42	32.00	76.00	82.80	59.00	O	A	2.00	LH M16X80-C	0.00~	0.00~	90.0~	~	C ~	SVKT 114508-ML ~	71E01A05B627B ~	SVKT 114508-ML	FDA ~	02 ~	IS$$678247058514781 ~	82.80~	6340893

Front head ordered seperately
Note: For use, both the front head and base unit must be connected
