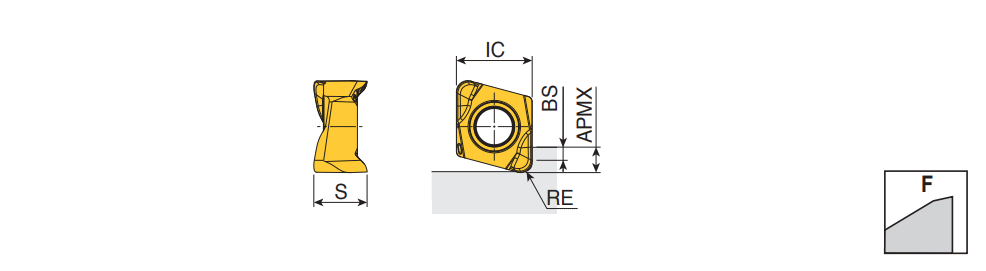

4NHT 04-F : Double-sided 4-corner ground insert, flat wiper design for excellent surface finish and compatible with the existing small size carbide end mill range.

Designation	S1	IC	S	APMX	RE	BS	fz (max)	fz (min)	d1	ap (min)	ap (max)	Insert	SF	CE	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
4NHT 040205R-F	4.00~	4.00	3.10	2.20	0.50	1.70	0.300	0.070	0.00~	0.20	2.00	C4M-4N04 ~	M6 ~	4~	71DD68D301C30 ~	G30 ~	F ~	TT2510~	IS$$1188856158617950 ~	4NHT 04-F ~	0~	6217860		1		TT2510
4NHT 040210R-F	4.00~	4.00	3.00	2.00	1.00	1.00	0.300	0.070	0.00~	0.20	1.80	C4M-4N04 ~	M6 ~	4~	71DD68D301C30 ~	G30 ~	F ~	TT2510~	IS$$1188856158617950 ~	4NHT 04-F ~	0~	6217861		1		TT2510
