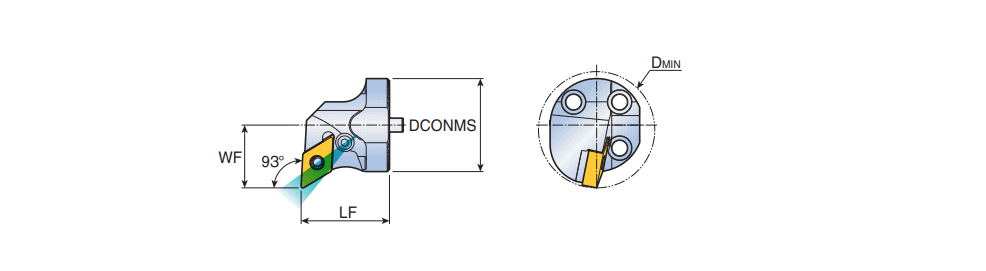

QH-PDUNR/L : Exchangeable boring heads with negative 55° DN..1506.. inserts & 93° approach angle for anti-vibration deep boring

Designation	DCONMS	LF	WF	DMIN		HAND	d	t	Kr	K	CL	Tool typ	ClssID	MIID	CCTMS	CCFMS	LTA	IIC	IIC_2	IIC_3	IIC_4	GICAT	GIREM	giic	GICODE
QH40-PDUNL-1506	40.00	38.00	27.00	50.00	O ~	L ~	12.70~	6.35~	30~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	DNGA 150608	CMS ~	01 ~	38.00~	IS$$493442649564267 ~	IS$$581084907694694 ~	IS$$612474122530520 ~	IS$$808521261787470 ~	6263866		0
QH40-PDUNR-1506	40.00	38.00	27.00	50.00	O ~	R ~	12.70~	6.35~	30~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	DNGA 150608	CMS ~	01 ~	38.00~	IS$$493442649564267 ~	IS$$581084907694694 ~	IS$$612474122530520 ~	IS$$808521261787470 ~	6250939		0

When applying 50mm shank, Dmin for the assembly is 60mm.
When applying 60mm shank, Dmin for the assembly is 70mm.
