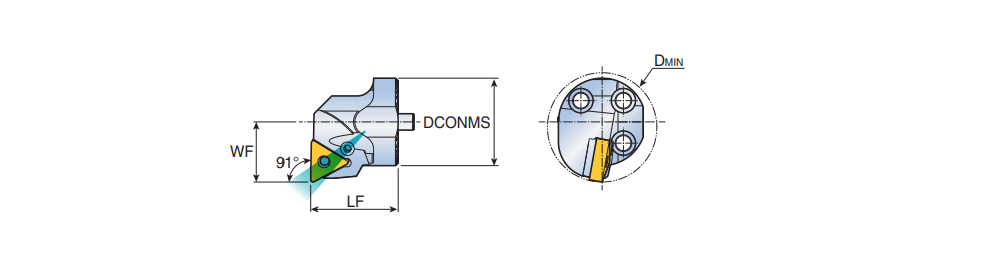

QH-PTFNR/L : Exchangeable boring heads with triangular inserts & 91° approach angle for anti-vibration deep boring

Designation	DCONMS	LF	WF	DMIN		HAND	d	t	Kr	K	CL	Tool typ	ClssID	MIID	CCTMS	CCFMS	LTA	IIC	IIC_2	IIC_3	GICAT
QH32-PTFNL-16	32.00	32.00	22.00	40.00	O ~	L ~	9.52~	4.76~	0~	91.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	TNGA 160408	CMS ~	01 ~	32.00~	IS$$499577722031119 ~	IS$$505657970253056 ~	IS$$979311444151597 ~	6263868
QH32-PTFNR-16	32.00	32.00	22.00	40.00	O ~	R ~	9.52~	4.76~	0~	91.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	TNGA 160408	CMS ~	01 ~	32.00~	IS$$499578017563422 ~	IS$$505658269163133 ~	IS$$979311444151597 ~	6263867
QH40-PTFNL-16	40.00	38.00	27.00	50.00	O ~	L ~	9.52~	4.76~	0~	91.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	TNGA 160408	CMS ~	01 ~	38.00~	IS$$499577722031119 ~	IS$$505657970253056 ~	IS$$979311444151597 ~	6263870
QH40-PTFNR-16	40.00	38.00	27.00	50.00	O ~	R ~	9.52~	4.76~	0~	91.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	TNGA 160408	CMS ~	01 ~	38.00~	IS$$499578017563422 ~	IS$$505658269163133 ~	IS$$979311444151597 ~	6263869

When applying 50mm shank, Dmin for the assembly is 60mm.
When applying 60mm shank, Dmin for the assembly is 70mm.
