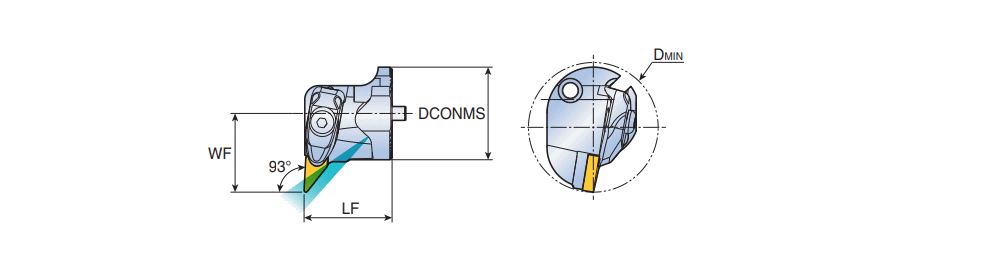

QH-TVUNR/L : Exchangeable boring heads with VN..16.. inserts & 93° approach angle for anti-vibration deep boring

Designation	DCONMS	LF	WF	DMIN		HAND	d	t	Kr	K	CL	Tool typ	ClssID	MIID	CCTMS	CCFMS	LTA	IIC	IIC_2	GICAT	GIREM	giic	GICODE
QH40-TVUNL-16	40.00	38.00	34.00	56.00	O ~	L ~	9.52~	4.76~	50~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	VNGA 160408	CMS ~	01 ~	38.00~	IS$$517534563983049 ~	IS$$586021506644166 ~	6263872		0
QH40-TVUNR-16	40.00	38.00	34.00	56.00	O ~	R ~	9.52~	4.76~	50~	93.0~	SCREW ~	ADAPTER ~	71E01A0E9CBA9 ~	VNGA 160408	CMS ~	01 ~	38.00~	IS$$517534563983049 ~	IS$$586021506644166 ~	6263871		0

When applying 50mm shank, Dmin for the assembly is 60mm.
When applying 60mm shank, Dmin for the assembly is 70mm.
