Turning
Main Application

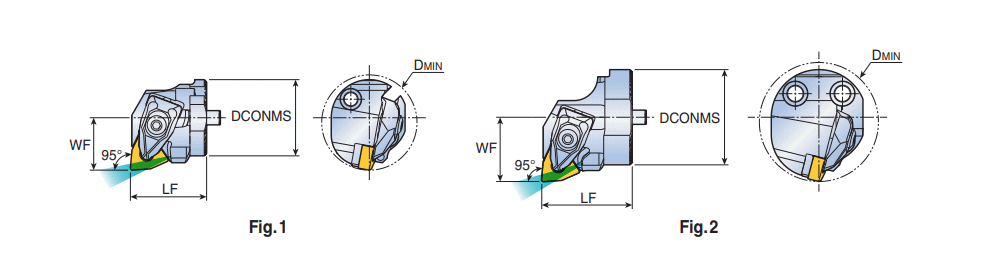

QH-TWLNR/L : Exchangeable boring heads with negative 80° Trigon inserts & 95° approach angle for anti-vibration deep boring


  DesignationDCONMS LF WF DMIN Fig.  HAND d t Kr K CL Tool typ ClssID MIID CCTMS CCFMS LTA IIC GICATGIREMgiicGICODE
  QH32-TWLNL-08 32.0032.0022.0040.001O ~L ~12.70~4.76~0~95.0~SCREW ~ADAPTER ~71E01A0E9CBA9 ~WNGA 080408 CMS ~01 ~32.00~IS$$538499157219440 ~6263874 0
  QH32-TWLNR-08 32.0032.0022.0040.001O ~R ~12.70~4.76~0~95.0~SCREW ~ADAPTER ~71E01A0E9CBA9 ~WNGA 080408 CMS ~01 ~32.00~IS$$538499157219440 ~6263873 0
  QH40-TWLNL-08 40.0038.0027.0050.002O ~L ~12.70~4.76~0~95.0~SCREW ~ADAPTER ~71E01A0E9CBA9 ~WNGA 080408 CMS ~01 ~38.00~IS$$538499157219440 ~6263876 0
  QH40-TWLNR-08 40.0038.0027.0050.002O ~R ~12.70~4.76~0~95.0~SCREW ~ADAPTER ~71E01A0E9CBA9 ~WNGA 080408 CMS ~01 ~38.00~IS$$538499157219440 ~6263875 0
When applying 50mm shank, Dmin for the assembly is 60mm.
When applying 60mm shank, Dmin for the assembly is 70mm.
