4N TE90-S-06 : 90° Modular end mills with MAXIRUSH adaptation & unique four high positive helical cutting edges of double-sided 4NKT 06 inserts and high ramping capability

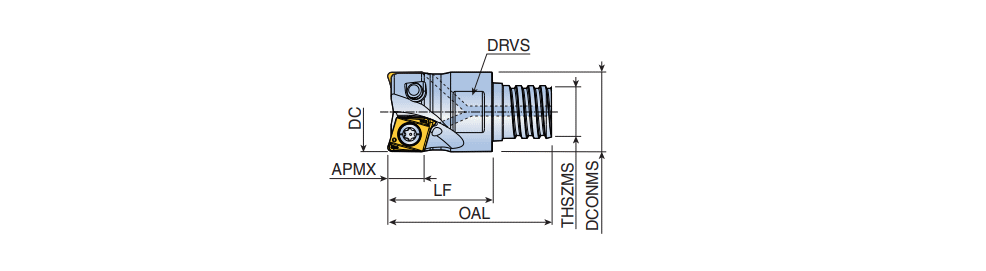

Designation	Tool sty	DC	CICT	DCONMS	LF	OAL	THSZMS	APMX	DRVS		PD		S1	Rd	Insert	Pocket	ClssID	MIID	KAPR	CCTMS	CCFMS	FF/RN	IIC	LTA	ZEFF	ZEFP	GICAT	GIREM	giic	GICODE
4N TE90-216-S10-06	MODULAR ~	16.00	2	15.20	20.00	31.30	S10	6.00	8.0	O ~	RC ~	0.03	6.00~	4.50~	C4M-4N06 ~	4N06-HF ~	71E01A05D27A8 ~	4NKT 040204R-M	90.0~	SAI ~	01 ~	FF ~	IS$$2186742640665936 ~	20.00~	2~	2~	6320570		0

Cutter body for '4NKT 040212R-HF' insert should be modified with body corner radius 1.2 mm
Matched with MAXIRUSH holder
