TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

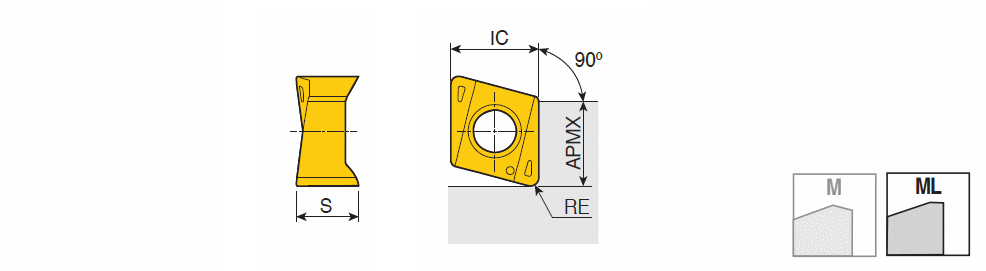

4NKT 09-ML : Double-sided inserts with four high positive helical cutting edges & high ramping capacity for 90° shoulders of stainless steel and light cutting

Designation	INSL	S	APMX	RE	fz (max)	fz (min)	ap (min)	ap (max)	S1	Insert	SF	CEDC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
4NKT 090408R-ML	8.70	6.20	8.00	0.80	0.100	0.050	2.50	7.00	9.00~	C4M-4N09 ~	M6 ~	4~	71DD68D301C30 ~	G40 ~	ML ~	TT3535~	IS$$992347946472862 ~	4NKT 09 ~	0~	6250229		3		TT8080 TT3535 TT9080
