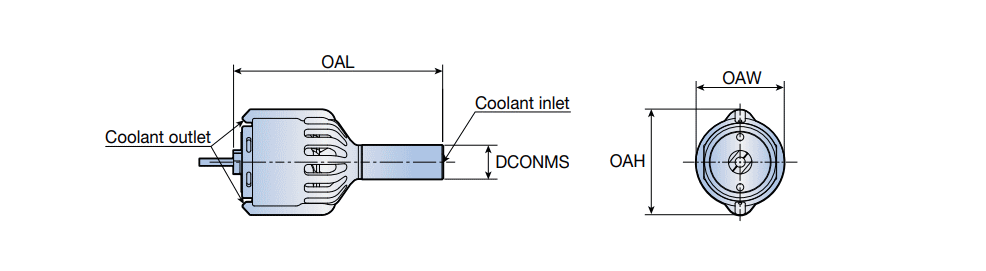

TJS M00 : Coolant driven high-speed compact spindle

Designation	DCONMS	LS	OAL	OAH	OAW	S3	ClssID	LTA	GICAT	GIREM	giic	GICODE
TJS M00-3.0	10.00	23.8	61.80	26.0	31.00	~	71EAD3871D313 ~	0.00~	6260627		0

Coolant pressure: 15-40 bar and flow rate: 10-20l/min
Rotational spindle speed: 18,000-40,000 rpm
The spindle provides only external strong coolant jet around the tool
