TaeguTec Cutting Tools - Metal Working Tools - Turning -

HCKNR/L (RHINO) : Hook lever RHINOTURN holder facing with 75° approach angle for CN.. 0904 inserts using 100° corner

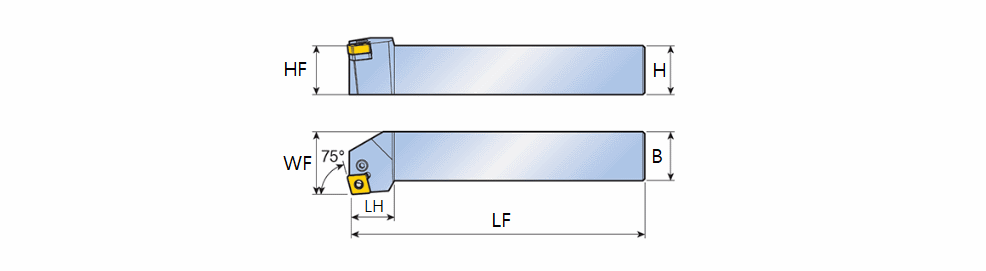

Right-hand shown

Designation	HF	H	B	LF	LH	WF	IC	t	CL	Tool typ	HAND	KAPR	Kr	ClssID	MIID	IIC	IIC_2	IIC_3	GICAT	GIREM	giic	GICODE
HCKNL 2525 M0904	25.0	25.0	25.0	150.00	22.0	32.00	9.52~	4.76~	HOOK LEVER ~	SQUARE ~	L ~	75.0~	75~	71E01A0E85121 ~	CNMG 090408 PC	IS$$1725095954716036 ~	IS$$1861966634141122 ~	IS$$1994863254591953 ~	6121316		0
HCKNR 2525 M0904	25.0	25.0	25.0	150.00	22.0	32.00	9.52~	4.76~	HOOK LEVER ~	SQUARE ~	R ~	75.0~	75~	71E01A0E85121 ~	CNMG 090408 PC	IS$$1725095954716036 ~	IS$$1861966634141122 ~	IS$$1994863254591953 ~	6111542		0
