TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

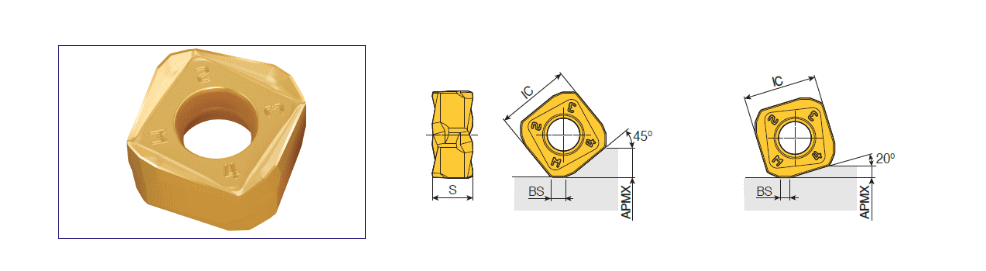

KIT CHASE8SFEED-FOLLOW : The Kit for mass production contains SQKU 8-corner inserts for roughing (45°) and high feed (20°) face milling.

Designation	IC	S	APMX	BS	GICAT	giic
KIWF-A-SQKU 11-M	11.20	6.30	4.20	1.90	6255364	1
KIWF-B-SQKU 11-M	11.20	6.30	4.20	1.90	6255365	1
KIWF-C-SQKU 11-M	11.20	6.30	4.20	1.90	6255366	1
KIWF-A-SQKU 14-M	14.50	7.80	6.00	2.00	6255367	1
KIWF-B-SQKU 14-M	14.50	7.80	6.00	2.00	6255368	1
KIWF-C-SQKU 14-M	14.50	7.80	6.00	2.00	6255369	1

For recommended machining condition, please click on "More Info" Feed & Depth of cut data for 45° facing.
