TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

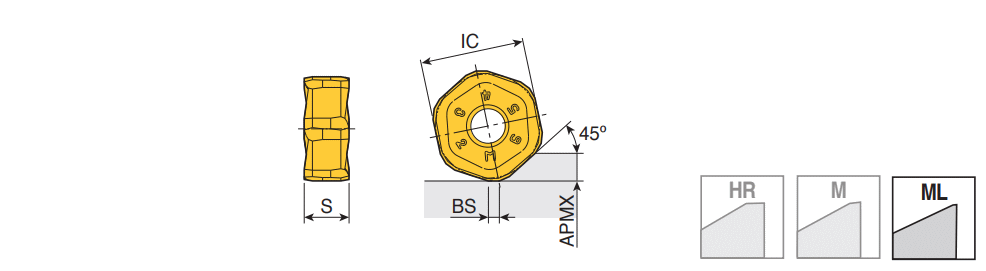

HXKU 10 ANR-ML : Double-sided inserts with Economical 12 cutting edges for steel and cast iron roughing in maximum depth of cut Ap 5.0 mm with reinforced cutting edges

Designation	IC	S	APMX	BS	S1	CE	Insert	fz (max)	fz (min)	ap (min)	ap (max)	SF	ClssID	ESP	CB	CEDC	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
HXKU 1007 ANR-ML	19.05	8.30	5.00	1.00	10.00~	12~	C12M-HX10 ~	0.300	0.100	2.00	5.00	~	71DD68D7A8E5F ~	G40 ~	ML ~	12~	TT3535~	IS$$626778030749675 ~	HXKU 10 ~	0~	6263805		3		TT8080 TT3535 TT9080
