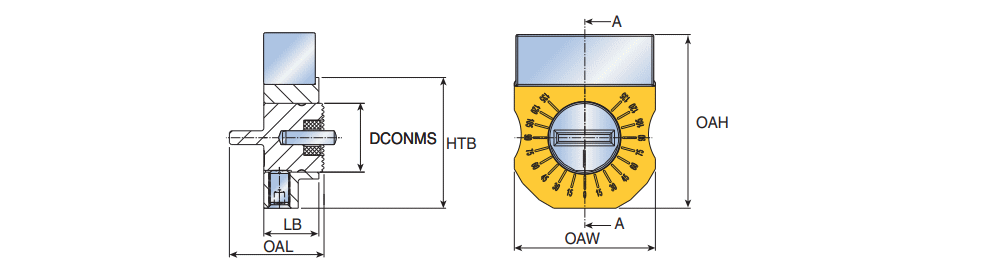

QH-SET-LEV : Center height set up device for Anti-Vibration boring bars

Designation	DCONMS	HTB	OAL	LB	Shank	OAH	OAW	GICAT	GIREM	giic	GICODE
QH-SET 16-25-LEV	20.00	38.0	27.50	16.00	16, 20, 25	50.5	41.00	6247923		0
QH-SET 32-60-LEV	29.00	49.0	28.00	16.00	32, 40, 50, 60	59.0	49.00	6247924		0
