TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

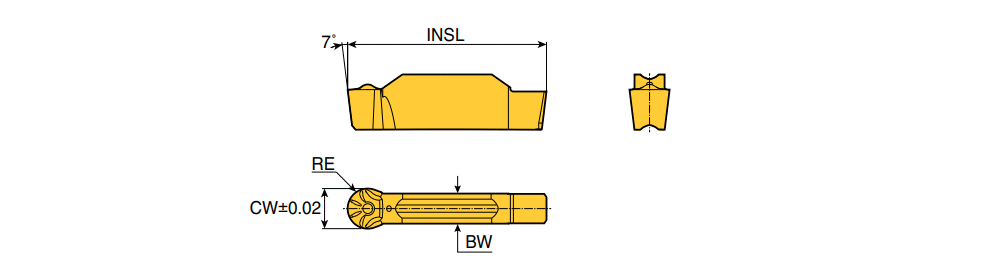

TST-RS (Full radius) : Precision single-ended inserts for external turning, grooving and profiling

Designation	Seat Siz	CW	RE	BW	INSL	R	ap (max)	ft (min)	ft (max)	fg (min)	fg (max)	CB1	W	W+-toler	ClssID	HAND	CEDC	COATP	CB	SC	GRDMFG	IIC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TST 3.00E-1.50-RS	3	3.00	1.50	2.40	19.80	0.000~	1.50	0.15	0.28	0.09	0.18	M6E ~	0.00~	0.00~	71DDA089C8D1E ~	N ~	1~	PVD ~	RS ~	~	TT3010~	IS$$2747605741983180 ~	6260500	2	TT9080 TT3010
TST 4.00E-2.00-RS	4	4.00	2.00	3.00	19.80	0.000~	2.00	0.18	0.35	0.10	0.20	M6E ~	0.00~	0.00~	71DDA089C8D1E ~	N ~	1~	PVD ~	RS ~	~	TT3010~	IS$$2373158593875300 ~	6260502	2	TT9080 TT3010
TST 5.00E-2.50-RS	5	5.00	2.50	4.00	25.00	0.000~	2.50	0.25	0.54	0.13	0.23	M6E ~	0.00~	0.00~	71DDA089C8D1E ~	N ~	1~	PVD ~	RS ~	~	TT3010~	IS$$2147126518071528 ~	6260504	2	TT9080 TT3010
TST 6.00E-3.00-RS	6	6.00	3.00	5.00	25.00	0.000~	3.00	0.30	0.67	0.15	0.27	M6E ~	0.00~	0.00~	71DDA089C8D1E ~	N ~	1~	PVD ~	RS ~	~	TT3010~	IS$$2181971322726440 ~	6260505	2	TT9080 TT3010
