TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

MXEE-R-1.5D : 4-6 flute, for roughing with 1.5D flute length

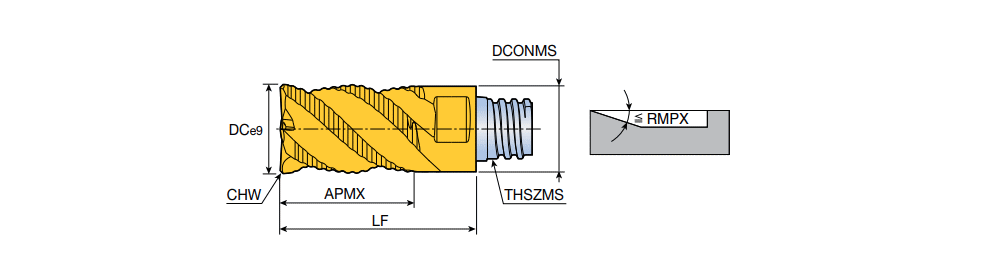

Designation	Tool sty	DC	NOF	CHW	APMX	LF	THSZMS	DCONMS	RMPX	H.A	Rd	fz (min)	fz (max)	ClssID	CCTMS	CCFMS	GRDMFG	ISYC	LPR	LTA	ZEFF	ZEFP	GICAT	giic	Grade & Vc Click on grade for cutting speed value
MXEE080L12C25R04S05	HEAD TYPE ~	8.00	4	0.25	12.00	18.00	S05	7.70	5.00	45.0~	0.00~	0.030	0.080	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	18.00~	18.00~	4~	4~	6254467	1	TT5523
MXEE100L15C30R04S06	HEAD TYPE ~	10.00	4	0.30	15.00	22.00	S06	9.60	5.00	45.0~	0.00~	0.030	0.090	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	22.00~	22.00~	4~	4~	6254468	1	TT5523
MXEE120L18C35R04S08	HEAD TYPE ~	12.00	4	0.35	18.00	27.00	S08	11.70	5.00	45.0~	0.00~	0.040	0.100	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	27.00~	27.00~	4~	4~	6254469	1	TT5523
MXEE160L24C40R05S10	HEAD TYPE ~	16.00	5	0.40	24.00	33.50	S10	15.30	5.00	45.0~	0.00~	0.040	0.100	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	33.50~	33.50~	5~	5~	6254470	1	TT5523
MXEE200L30C40R06S12	HEAD TYPE ~	20.00	6	0.40	30.00	41.00	S12	18.50	3.00	45.0~	0.00~	0.050	0.110	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	41.00~	41.00~	6~	6~	6254471	1	TT5523

Wrench should be ordered separately
