TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

MXEE-RA03 : 3 flute, for roughing with aluminum machining

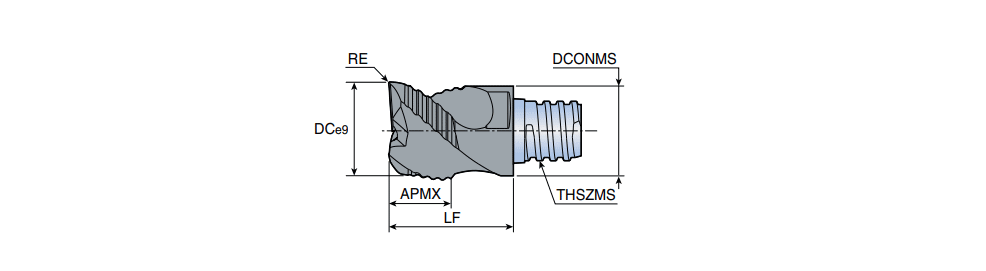

Designation	Tool sty	DC	RE	APMX	LF	THSZMS	DCONMS	H.A	Rd	fz (min)	fz (max)	NOF	ClssID	CCTMS	CCFMS	GRDMFG	ISYC	LPR	LTA	ZEFF	ZEFP	GICAT	giic	Grade & Vc Click on grade for cutting speed value
MXEE080L05R02RA03S05	HEAD TYPE ~	8.00	0.20	5.00	10.00	S05	7.70	45.0~	0.00~	0.030	0.150	3~	71E01A05D27A8 ~	SAI ~	01 ~	UF10 ~	303-02 ~	10.00~	10.00~	3~	3~	6254366	1	UF10
MXEE100L06R02RA03S06	HEAD TYPE ~	10.00	0.20	6.00	13.00	S06	9.60	45.0~	0.00~	0.050	0.200	3~	71E01A05D27A8 ~	SAI ~	01 ~	UF10 ~	303-02 ~	13.00~	13.00~	3~	3~	6254367	1	UF10
MXEE120L08R02RA03S08	HEAD TYPE ~	12.00	0.20	8.00	16.50	S08	11.70	45.0~	0.00~	0.070	0.220	3~	71E01A05D27A8 ~	SAI ~	01 ~	UF10 ~	303-02 ~	16.50~	16.50~	3~	3~	6254368	1	UF10
MXEE160L10R02RA03S10	HEAD TYPE ~	16.00	0.20	10.00	20.50	S10	15.30	45.0~	0.00~	0.070	0.250	3~	71E01A05D27A8 ~	SAI ~	01 ~	UF10 ~	303-02 ~	20.50~	20.50~	3~	3~	6254369	1	UF10
MXEE200L12R02RA03S12	HEAD TYPE ~	20.00	0.20	12.00	25.50	S12	18.50	45.0~	0.00~	0.070	0.250	3~	71E01A05D27A8 ~	SAI ~	01 ~	UF10 ~	303-02 ~	25.50~	25.50~	3~	3~	6254370	1	UF10

Wrench should be ordered separately
