TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

MXED-I07/I09-1.5D : Long cutting edge 1.5D & 7,9 flutes & varianle helix, pitch

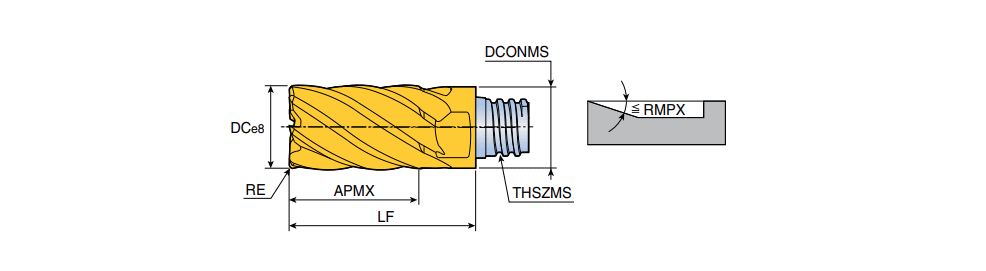

Designation	Tool sty	DC	NOF	RE	APMX	LF	THSZMS	DCONMS	RMPX	H.A	Rd	fz (min)	fz (max)	ClssID	CCTMS	CCFMS	GRDMFG	ISYC	LPR	LTA	GICAT	giic	Grade & Vc Click on grade for cutting speed value
MXED100L15R05I07S06	HEAD TYPE ~	10.00	7	0.50	15.00	22.00	S06	9.60	3.00	36.0~	0.00~	0.040	0.100	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	22.00~	22.00~	6254581	1	TT5523
MXED120L18R05I07S08	HEAD TYPE ~	12.00	7	0.50	18.00	27.00	S08	11.70	3.00	36.0~	0.00~	0.040	0.100	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	27.00~	27.00~	6254582	1	TT5523
MXED160L24R08I09S10	HEAD TYPE ~	16.00	9	0.80	24.00	33.50	S10	15.30	1.00	36.0~	0.00~	0.050	0.100	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	33.50~	33.50~	6254583	1	TT5523
MXED200L30R10I09S12	HEAD TYPE ~	20.00	9	1.00	30.00	41.00	S12	18.50	1.00	36.0~	0.00~	0.050	0.100	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-02 ~	41.00~	41.00~	6254584	1	TT5523

Wrench should be ordered separately
