TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

MXFX-04/06 : 4,6 flute, for high feed machining and small D.O.C

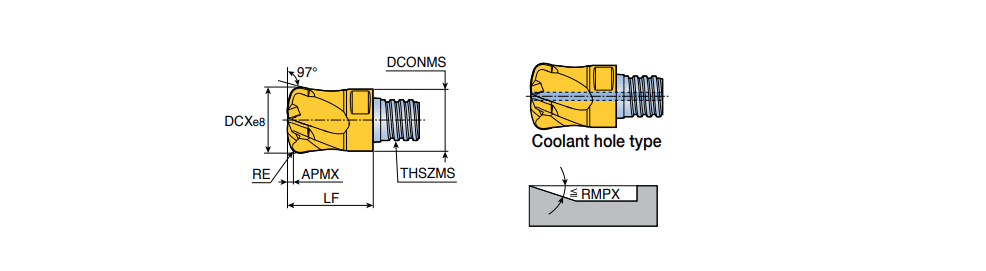

Designation	Tool sty	DC	NOF	RE	APMX	LF	THSZMS	DCONMS	RMPX	CSP	H.A	Rd	fz (min)	fz (max)	ClssID	CCTMS	CCFMS	GRDMFG	ISYC	LPR	LTA	ZEFF	ZEFP	GICAT	giic	Grade & Vc Click on grade for cutting speed value
MXFX080L0.4R16-04S05	HEAD TYPE ~	8.00	4	1.62	0.40	10.00	S05	7.50	5.00	X	30.0~	0.00~	0.120	0.480	71E01A05D27A8 ~	SAI ~	01 ~	TT5513~	303-01 ~	10.00~	10.00~	4~	4~	6254589	1	TT5513
MXFX100L0.4R10-06S06C	HEAD TYPE ~	10.00	6	1.00	0.45	10.00	S06	9.50	3.00	O	30.0~	0.00~	0.160	0.470	71E01A05D27A8 ~	SAI ~	01 ~	TT5513~	303-01 ~	10.00~	10.00~	6~	6~	6254592	1	TT5513
MXFX100L0.5R20-04S06	HEAD TYPE ~	10.00	4	2.01	0.50	13.00	S06	9.50	5.00	X	30.0~	0.00~	0.160	0.570	71E01A05D27A8 ~	SAI ~	01 ~	TT5513~	303-01 ~	13.00~	13.00~	4~	4~	6254591	1	TT5513
MXFX120L0.6R12-06S08C	HEAD TYPE ~	12.00	6	1.20	0.65	12.00	S08	11.50	3.00	O	30.0~	0.00~	0.160	0.540	71E01A05D27A8 ~	SAI ~	01 ~	TT5513~	303-01 ~	12.00~	12.00~	6~	6~	6254595	1	TT5513
MXFX120L0.6R18-04S08C	HEAD TYPE ~	12.00	4	1.80	0.60	16.50	S08	11.50	5.00	O	30.0~	0.00~	0.160	0.670	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-01 ~	16.50~	16.50~	4~	4~	6254593	1	TT5523
MXFX120L0.6R24-04S08	HEAD TYPE ~	12.00	4	2.47	0.60	16.50	S08	11.50	5.00	X	30.0~	0.00~	0.160	0.670	71E01A05D27A8 ~	SAI ~	01 ~	TT5513~	303-01 ~	16.50~	16.50~	4~	4~	6254594	1	TT5513
MXFX160L0.8R22-04S10C	HEAD TYPE ~	16.00	4	2.20	0.80	20.50	S10	15.40	5.00	O	30.0~	0.00~	0.200	0.750	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-01 ~	20.50~	20.50~	4~	4~	6254596	1	TT5523
MXFX160L0.8R32-04S10	HEAD TYPE ~	16.00	4	3.25	0.80	20.50	S10	15.40	5.00	X	30.0~	0.00~	0.200	0.750	71E01A05D27A8 ~	SAI ~	01 ~	TT5513~	303-01 ~	20.50~	20.50~	4~	4~	6254597	1	TT5513
MXFX200L1.0R40-04S12	HEAD TYPE ~	20.00	4	4.02	1.00	25.50	S12	18.45	5.00	X	30.0~	0.00~	0.200	0.900	71E01A05D27A8 ~	SAI ~	01 ~	TT5513~	303-01 ~	25.50~	25.50~	4~	4~	6254598	1	TT5513
MXFX250L1.2R31-06S15	HEAD TYPE ~	25.00	6	3.10	1.20	25.00	S15	23.90	5.00	X	30.0~	0.00~	0.250	1.000	71E01A05D27A8 ~	SAI ~	01 ~	TT5513~	303-01 ~	25.00~	25.00~	6~	6~	6254599	1	TT5513

Wrench should be ordered separately
