TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

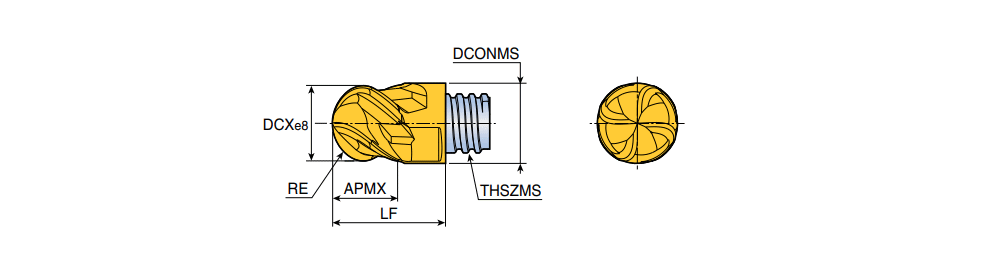

MXBE-BH-04 : 4 flute, for high productivity on hard material

Designation	Tool sty	DCX	RE	APMX	LF	THSZMS	DCONMS	H.A	Rd	NOF	ClssID	CCTMS	CCFMS	GRDMFG	ISYC	LPR	LTA	GICAT	giic	Grade & Vc Click on grade for cutting speed value
MXBE080L05-BH-04S05	HEAD TYPE ~	8.00	3.98	5.40	10.00	S05	7.70	45.0~	0.00~	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5513~	303-06 ~	10.00~	10.00~	6254603	1	TT5513
MXBE100L07-BH-04S06	HEAD TYPE ~	10.00	4.98	7.40	13.00	S06	9.60	45.0~	0.00~	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5513~	303-06 ~	13.00~	13.00~	6254604	1	TT5513
MXBE120L09-BH-04S08	HEAD TYPE ~	12.00	5.98	9.30	16.50	S08	11.70	45.0~	0.00~	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5513~	303-06 ~	16.50~	16.50~	6254605	1	TT5513
MXBE160L12-BH-04S10	HEAD TYPE ~	16.00	7.98	12.40	20.50	S10	15.30	45.0~	0.00~	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5513~	303-06 ~	20.50~	20.50~	6254606	1	TT5513
MXBE200L16-BH-04S12	HEAD TYPE ~	20.00	9.97	16.00	25.50	S12	18.50	45.0~	0.00~	4~	71E01A05D27A8 ~	SAI ~	01 ~	TT5513~	303-06 ~	25.50~	25.50~	6254607	1	TT5513

Wrench should be ordered separately
