TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

MXDS-02 : 2 flute, for spot drill & chamfer

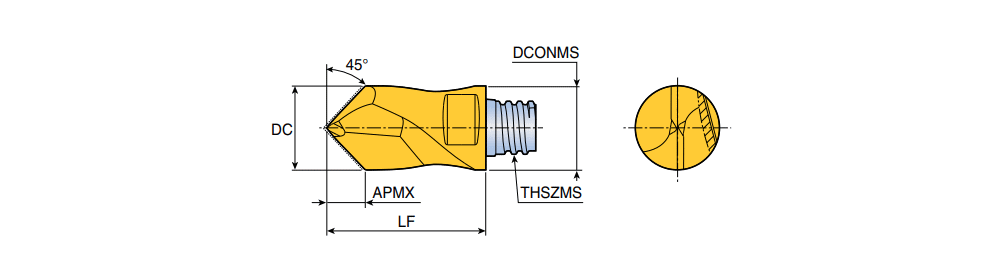

Designation	Tool sty	DC	APMX	LF	THSZMS	DCONMS	Rd	NOF	ClssID	CCTMS	CCFMS	GRDMFG	ISYC	LPR	LTA	GICAT	giic	Grade & Vc Click on grade for cutting speed value
MXDS060A45-02S04	HEAD TYPE ~	6.00	2.70	11.00	S04	5.70	0.00~	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	302-06 ~	11.00~	11.00~	6254623	1	TT5523
MXDS080A45-02S05	HEAD TYPE ~	8.00	3.70	15.00	S05	7.70	0.00~	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	302-06 ~	15.00~	15.00~	6254624	1	TT5523
MXDS100A45-02S06	HEAD TYPE ~	10.00	4.40	19.00	S06	9.70	0.00~	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	302-06 ~	19.00~	19.00~	6252962	1	TT5523
MXDS120A45-02S08	HEAD TYPE ~	12.00	5.40	23.00	S08	11.70	0.00~	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	302-06 ~	23.00~	23.00~	6254625	1	TT5523
MXDS160A45-02S10	HEAD TYPE ~	16.00	7.10	28.00	S10	15.30	0.00~	2~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	302-06 ~	28.00~	28.00~	6254626	1	TT5523

Wrench should be ordered separately
