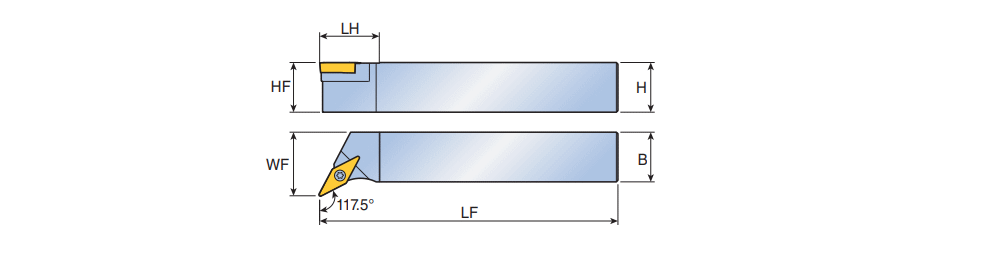

LVQBR/L : Screw type holder with 117.5° approach angle for positive° 35° Rhombic inserts of 5° clearance angle

Designation	H	HF	B	LF	LH	WF	MIID	d	t	Kr	K	CL	Tool typ	R/L	ClssID	IIC	GICAT	GIREM	giic	GICODE
LVQBL 2525 M16	25.0	25.0	25.0	150.00	30.0	32.00	VBMX 160408 FG	9.52~	4.76~	44~	93.0~	SCREW ~	SQUARE ~	L ~	71E01A0E85121 ~	IS$$312494221355022 ~	6261799		0
LVQBR 2525 M16	25.0	25.0	25.0	150.00	30.0	32.00	VBMX 160408 FG	9.52~	4.76~	44~	93.0~	SCREW ~	SQUARE ~	R ~	71E01A0E85121 ~	IS$$312494221355022 ~	6261798		0
