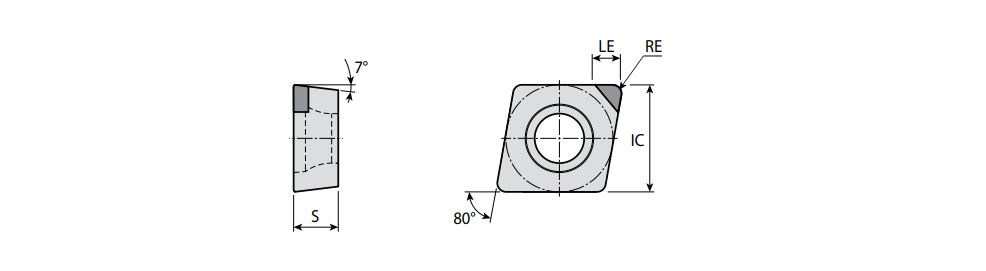

CCGT-CF : Positive ground 80° rhombic inserts with PCD CF chip breaker for super finishing in nonferrous machining.

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	SSC	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	GICAT	giic	Grade & Vc Click on grade for cutting speed value
CCGT 09T302 CF	9.52	3.97	0.20	0.00~	CF ~	80~	7.00~	0.10	1.00	0.05	0.20	1~	~	~	C ~	71DD68D301C30 ~	9 ~	PCD ~	TD1020~	3~	ISO$CC09T3023NB$$02 ~	32.50. ~	CCGT ~	Y ~	6263815	1	TD1020
CCGT 09T304 CF	9.52	3.97	0.40	0.00~	CF ~	80~	7.00~	0.10	1.00	0.05	0.20	1~	~	~	C ~	71DD68D301C30 ~	9 ~	PCD ~	TD1020~	3~	ISO$CC09T3043NB$$04 ~	32.51 ~	CCGT ~	Y ~	6263816	1	TD1020
CCGT 120404 CF	12.27	4.76	0.40	0.00~	CF ~	80~	7.00~	0.10	1.00	0.05	0.20	1~	~	~	C ~	71DD68D301C30 ~	12 ~	PCD ~	TD1020~	3~	ISO$CC1204043NB$$04 ~	431 CF ~	CCGT ~	Y ~	6263817	1	TD1020
CCGT 120408 CF	12.27	4.76	0.80	0.00~	CF ~	80~	7.00~	0.10	1.00	0.05	0.20	1~	~	~	C ~	71DD68D301C30 ~	12 ~	PCD ~	TD1020~	3~	ISO$CC1204083NB$$08 ~	432 CF ~	CCGT ~	Y ~	6263818	1	TD1020
