TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

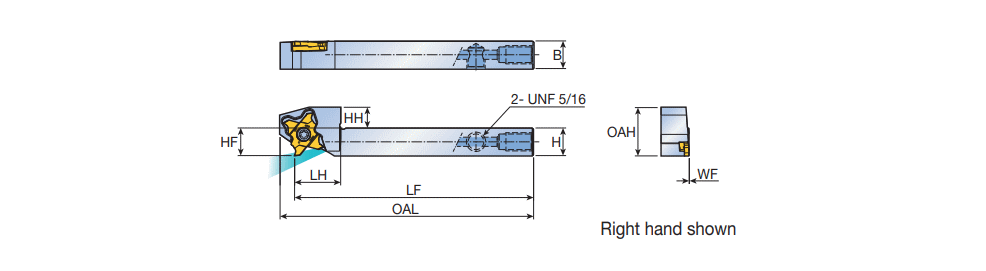

TMY-TQHR-TB : QUAD-RUSH Y-axis high pressure coolant sleeve holders with TQ..20-R inserts for parting and grooving

Designation	H	B	HH	LH	HF	WF	OAH	LF	OAL	S1	Tool typ		HAND	ClssID	MIID	SSC	LTA	IIC	GICAT	GIREM	giic	GICODE
TMY-TQHR 12-20-TB	12.0	12.0	9.0	20.0	12.0	0.00	21.0	125.00	131.30	20.00~	SQUARE ~	O ~	R ~	71E01A0E85121 ~	TQS 20-2.00-0.10-R ~	20 ~	30.00~	IS$$1195754368976992 ~	6253963		0
TMY-TQHR 16-20-TB	16.0	16.0	5.0	20.0	16.0	0.00	21.0	125.00	131.30	20.00~	SQUARE ~	O ~	R ~	71E01A0E85121 ~	TQS 20-2.00-0.10-R ~	20 ~	30.00~	IS$$1195754368976992 ~	6253964		0
