TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

TMS-TQHIL-TB : QUAD-RUSH Sleeve holders for external grooving

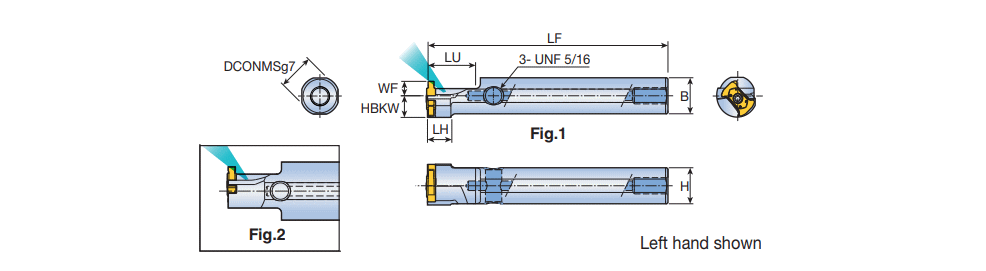

Designation	DCONMS	H	B	LF	LU	LH	WF	HBKW	Fig.	S1	Tool typ		HAND	ClssID	MIID	SSC	LTA	IIC	GICAT	GIREM	giic	GICODE
TMS-TQHIL 16-14-TB	16.00	15.0	15.0	100.00	20.0	10.0	6.00	9.0	1	14.00~	BORING BAR ~	O ~	L ~	71E01A0E9CBA9 ~	TQIS 14-2.00-0.10 ~	14 ~	50.50~	IS$$920464856577072 ~	6250922		0
TMS-TQHIL 25-14-TB	25.00	24.0	24.0	100.00	20.0	22.0	10.00	5.0	2	14.00~	BORING BAR ~	O ~	L ~	71E01A0E9CBA9 ~	TQIS 14-2.00-0.10 ~	14 ~	42.50~	IS$$920464856577072 ~	6248792		0
