TaeguTec Cutting Tools - Metal Working Tools - Turning -

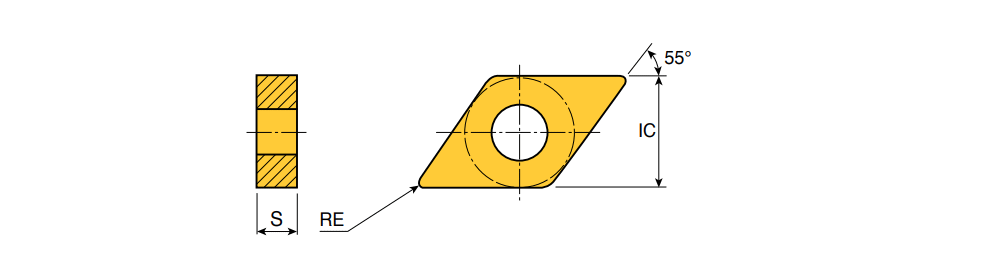

DNGX-ST : Negative ground 55° Rhombic RHINOTURN inserts

Designation	S1	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	HAND	CEDC	Precise	Utility	SC	ClssID	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
DNGX 130501M ST-R-E	1.00~	11.11	5.56	0.10	12.70~	ST-R-E ~	55~	0.00~	3.00	5.00	0.03	0.08	R ~	5~	~	~	D ~	71DD68D301C30 ~	RHINO-TURN ~	PVD ~	TT4430~	2~	ISO$DN1305012NA$$01 ~	.53.50 ~	DNGX ~	Y ~	13 ~	6256378	1	TT4430
DNGX 130502M ST-R-E	2.00~	11.11	5.56	0.20	12.70~	ST-R-E ~	55~	0.00~	5.00	5.00	0.03	0.10	R ~	5~	~	~	D ~	71DD68D301C30 ~	RHINO-TURN ~	PVD ~	TT4430~	2~	ISO$DN1305022NA$$02 ~	.53.50 ~	DNGX ~	Y ~	13 ~	6250802	1	TT4430
DNGX 130504M ST-R-E	3.00~	11.11	5.56	0.40	12.70~	ST-R-E ~	55~	0.00~	7.00	5.00	0.05	0.12	R ~	5~	~	~	D ~	71DD68D301C30 ~	RHINO-TURN ~	PVD ~	TT4430~	2~	ISO$DN1305042NA$$04 ~	.53.51 ~	DNGX ~	Y ~	13 ~	6256380	1	TT4430
DNGX 130501M ST-R-F	4.00~	11.11	5.56	0.10	12.70~	ST-R-F ~	55~	0.00~	3.00	5.00	0.03	0.08	R ~	5~	~	~	D ~	71DD68D301C30 ~	RHINO-TURN ~	PVD ~	TT4430~	2~	ISO$DN1305012NA$$01 ~	.53.50 ~	DNGX ~	Y ~	13 ~	6261315	2	TT9020 TT4430
DNGX 130502M ST-R-F	5.00~	11.11	5.56	0.20	12.70~	ST-R-F ~	55~	0.00~	5.00	5.00	0.03	0.10	R ~	5~	~	~	D ~	71DD68D301C30 ~	RHINO-TURN ~	PVD ~	TT4430~	2~	ISO$DN1305022NA$$02 ~	.53.50 ~	DNGX ~	Y ~	13 ~	6257740	2	TT9020 TT4430
DNGX 130504M ST-R-F	6.00~	11.11	5.56	0.40	12.70~	ST-R-F ~	55~	0.00~	7.00	5.00	0.05	0.12	R ~	0~	~	~	D ~	71DD68D301C30 ~	RHINO-TURN ~	PVD ~	TT4430~	2~	ISO$DN1305042NA$$04 ~	.53.51 ~	DNGX ~	Y ~	13 ~	6261364	2	TT9020 TT4430

M: Corner radius minus tolerance : Standard items
-R: Right hand insert
-E: Micro honing edge
-F: Sharp edge
