TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

TSG (FULL-RADIUS) : T-CLAMP single-ended CBN inserts for turning and grooving and profiling

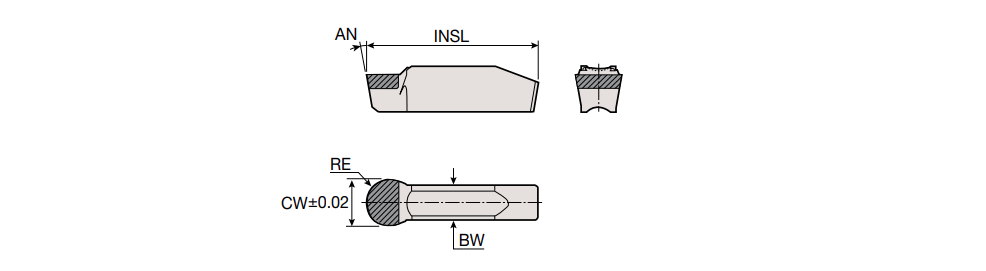

Designation	SSC	CW	RE	BW	INSL	AN	ap (max)	ft (min)	ft (max)	fg (min)	fg (max)	CB1	W+-toler	R/L	ClssID	CEDC	COATP	CBMD	GRDMFG	IIC	GICAT	giic	Grade & Vc Click on grade for cutting speed value
TSG 3.00H-1.50	3	3.00	1.50	2.40	20.00	7.0	0.30	0.03	0.10	0.02	0.06	~	0.00~	N ~	71DDA089C8D1E ~	1~	CBN ~	G ~	TB2015~	~	6261026	1	TB2015
TSG 4.00H-2.00	4	4.00	2.00	3.00	20.00	7.0	0.40	0.04	0.14	0.02	0.09	~	0.00~	N ~	71DDA089C8D1E ~	1~	CBN ~	G ~	TB2015~	~	6238121	1	TB2015
TSG 5.00H-2.50	5	5.00	2.50	4.00	25.00	7.0	0.50	0.05	0.18	0.03	0.11	~	0.00~	N ~	71DDA089C8D1E ~	1~	CBN ~	G ~	TB2015~	~	6260529	1	TB2015
TSG 6.00H-3.00	6	6.00	3.00	5.00	25.00	7.0	0.60	0.06	0.22	0.04	0.13	~	0.00~	N ~	71DDA089C8D1E ~	1~	CBN ~	G ~	TB2015~	~	6260530	1	TB2015
TSG 8.00H-4.00	8	8.00	4.00	6.00	30.00	10.0	0.80	0.08	0.29	0.05	0.17	~	0.00~	N ~	71DDA089C8D1E ~	1~	CBN ~	G ~	TB2015~	~	6260531	1	TB2015
