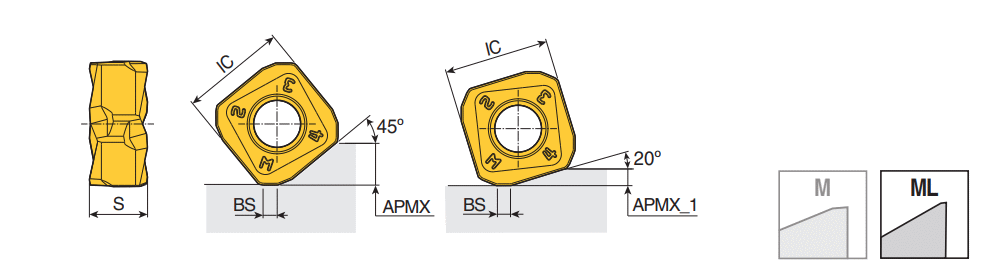

SQKU 14 ANR-ML : Double-sided Square inserts with 8 cutting edges for roughing (45°) and high feed (20°) face milling and high feed machining.

Designation	IC	S	APMX	BS	S1	ap (min)	ap (max)	fz (max)	fz (min)	APMX_1	ap.min_1	ap.max_1	fz.max_1	fz.min_1	SF	Insert	CE	SC	ClssID	ESP	apmax MF	CB	CEDC	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SQKU 1406 ANR-ML	14.50	7.80	6.00	2.00	14.00~	2.00	6.00	0.300	0.100	2.50	0.30	2.00	1.300	0.400	~	~	0~	S ~	71DD68D829217 ~	U40 ~	6.00~	ML ~	8~	TT3535~	IS$$701109547530651 ~	SQKU 14 ~	0~	6263807		3		TT8080 TT3535 TT9080

For 20° facing,please refer to the parameters below
-APMX_1
-ap.min_1, ap.max_1
-fz.max_1, fz.min_1
