TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

8D-TE90-12 : 90° End mills with 8 cutting edges of double-sided Square inserts SQK(H)U 12 for general milling

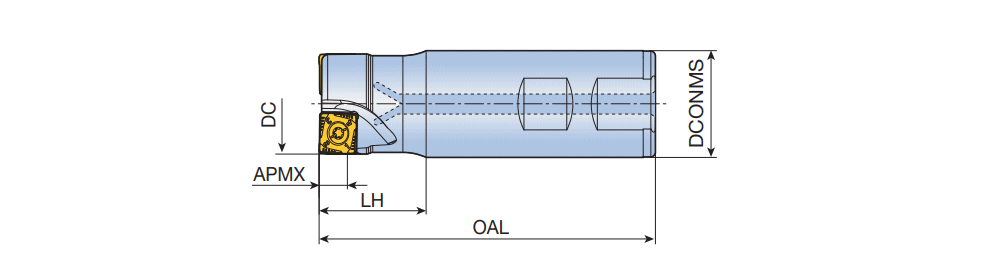

Designation	Tool sty	DC	CICT	DCONMS	OAL	LH	APMX		S1	Shank	Rd	e	PD		Insert	K	MIID	ClssID	CCTMS	CCFMS	IIC	LTA	ZEFF	ZEFP	GICAT	GIREM	giic	GICODE
8D-TE90-232-W32-12	ENDMILL ~	32.00	2	32.00	110.00	35.0	8.50	O ~	12.00~	W	0.00~	~	C ~	0.59~	C8M-SQ12 ~	90.0~	SQKU 120608 PNR-MP	71E01A05D27A8 ~	ZYL ~	10 ~	IS$$1094233105811853 ~	50.00~	2~	2~	6233760		0
8D-TE90-340-W32-12	ENDMILL ~	40.00	3	32.00	110.00	40.0	8.50	O ~	12.00~	W	0.00~	~	RC ~	0.62~	C8M-SQ12 ~	90.0~	SQKU 120608 PNR-MP	71E01A05D27A8 ~	ZYL ~	10 ~	IS$$1094233105811853 ~	50.00~	3~	3~	6233805		0
