TaeguTec Cutting Tools - Metal Working Tools - Turning -

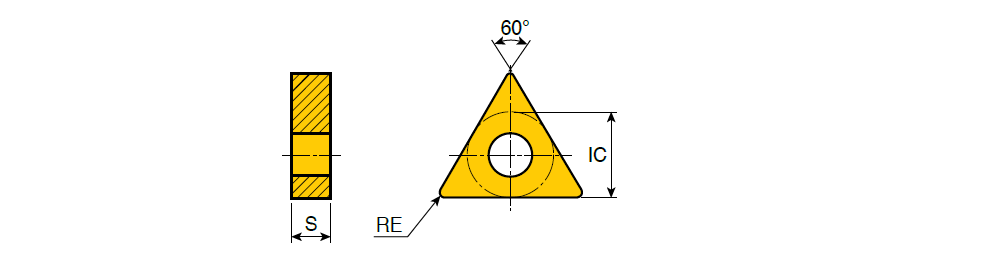

TNMG-RGP. : Negative Triangular inserts for semi-finishing to rough of steels with serrated cutting edge for good chip control in variable depth of cut

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
TNMG 160408 RGP	9.52	4.76	0.80	16.50~	MGP ~	60~	0.00~	1.50	5.00	0.25	0.65	6~	~	U ~	T ~	71DD68D8446CE ~	CVD ~	8115B ~	0~	~	~	~	Y ~	16 ~	6272146		4		TT8135B TT5100 TT8125B TT8115B
TNMG 160412 RGP	9.52	4.76	1.20	16.50~	MGP ~	60~	0.00~	2.00	5.00	0.25	0.65	6~	~	U ~	T ~	71DD68D8446CE ~	CVD ~	8125B ~	0~	~	~	~	Y ~	16 ~	6272720		3		TT8135B TT5100 TT8125B
