TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

HTB 2.../3... : Solid carbide taper ball end mills with 2, 3 flute

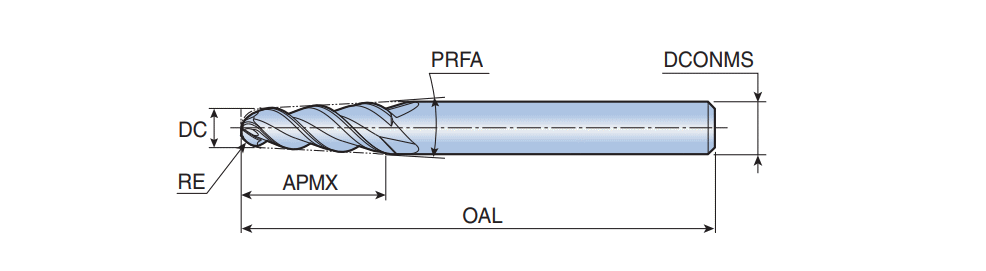

Designation	Tool sty	NOF	DC	RE	OAL	APMX	PRFA	DCONMS	FHA	Shank	RMPX	fz (min)	fz (max)	ClssID	CCTMS	CCFMS	ISYC	GRDMFG	LPR	LTA	ZEFF	ZEFP	GICAT	giic	Grade & Vc Click on grade for cutting speed value
HTB 2030TA4-06	SOLID TYPE ~	2	3.00	1.50	70.00	22.00	8.00	6.00	2.0~	C ~	0.00~	0.000~	0.000~	71E01A05D27A8 ~	ZYL ~	01 ~	303-12 ~	TT5515~	34.00~	34.00~	2~	2~	6263544	1	TT5515
HTB 3040TA4-08	SOLID TYPE ~	3	4.00	2.00	75.00	30.00	8.00	8.00	3.0~	C ~	0.00~	0.000~	0.000~	71E01A05D27A8 ~	ZYL ~	01 ~	303-12 ~	TT5515~	39.00~	39.00~	3~	3~	6263545	1	TT5515
HTB 3040TA4-10	SOLID TYPE ~	3	4.00	2.00	95.00	44.00	8.00	10.00	3.0~	C ~	0.00~	0.000~	0.000~	71E01A05D27A8 ~	ZYL ~	01 ~	303-12 ~	TT5515~	55.00~	55.00~	3~	3~	6263546	1	TT5515
HTB 3050TA4-12	SOLID TYPE ~	3	5.00	2.50	110.00	52.00	8.00	12.00	3.0~	C ~	0.00~	0.000~	0.000~	71E01A05D27A8 ~	ZYL ~	01 ~	303-12 ~	TT5515~	65.00~	65.00~	3~	3~	6263547	1	TT5515
HTB 3060TA3-12	SOLID TYPE ~	3	6.00	3.00	120.00	60.00	6.00	12.00	3.0~	C ~	0.00~	0.000~	0.000~	71E01A05D27A8 ~	ZYL ~	01 ~	303-12 ~	TT5515~	75.00~	75.00~	3~	3~	6263548	1	TT5515
HTB 3080TA3-16	SOLID TYPE ~	3	8.00	4.00	150.00	80.00	6.00	16.00	3.0~	C ~	0.00~	0.000~	0.000~	71E01A05D27A8 ~	ZYL ~	01 ~	303-12 ~	TT5515~	102.00~	102.00~	3~	3~	6263549	1	TT5515
