TaeguTec Cutting Tools - Metal Working Tools - Tooling System -

DIN69871-SRKIN-CX : CX coolant type thermal shrinking chucks

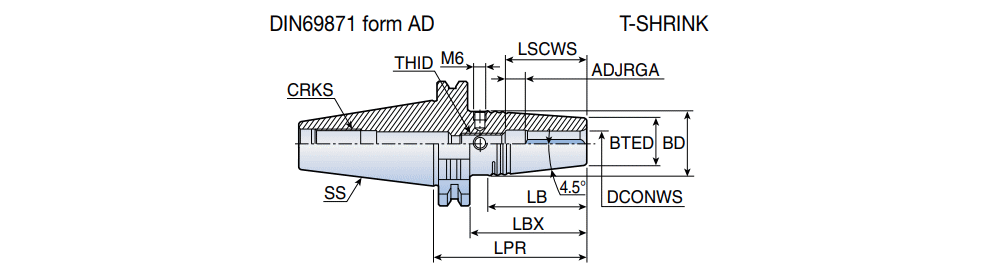

Designation	SS	DCONWS	BTED	BD	LPR	LBX	LB	ADJRGA	LSCWS	CRKS	THID		Shank	ClssID	LTA	CCTWS	CCFWS	LS	DF	GICAT	GIREM
DIN69871 40 SRKIN 6X80 CX	40	6.00	21.00	27.00	80.00	60.9	38.00	10.00	34.0	M16	M5	0.00~	C ~	71EAD3871D313 ~	999.00~	ZYL ~	1 ~	0.0~	0.00~	6273261
DIN69871 40 SRKIN 8X80 CX	40	8.00	21.00	27.00	80.00	60.9	38.00	10.00	34.0	M16	M6	0.00~	C ~	71EAD3871D313 ~	999.00~	ZYL ~	1 ~	0.0~	0.00~	6273262
DIN69871 40 SRKIN 10X80CX	40	10.00	24.00	32.00	80.00	60.9	51.00	9.00	40.0	M16	M8	0.00~	C ~	71EAD3871D313 ~	999.00~	ZYL ~	1 ~	0.0~	0.00~	6273263
DIN69871 40 SRKIN 12X80CX	40	12.00	24.00	32.00	80.00	60.9	51.00	9.00	45.0	M16	M10	0.00~	C ~	71EAD3871D313 ~	80.00~	ZYL ~	1 ~	0.0~	0.00~	6273264
DIN69871 40 SRKIN 14X80CX	40	14.00	27.00	34.00	80.00	60.9	45.00	9.00	45.0	M16	M10	0.00~	C ~	71EAD3871D313 ~	999.00~	ZYL ~	1 ~	0.0~	0.00~	6273265
DIN69871 40 SRKIN 16X80CX	40	16.00	27.00	34.00	80.00	60.9	45.00	9.00	48.0	M16	M12	0.00~	C ~	71EAD3871D313 ~	80.00~	ZYL ~	1 ~	0.0~	0.00~	6273266
DIN69871 40 SRKIN 20X80CX	40	20.00	33.00	42.00	80.00	60.9	57.00	9.00	49.0	M16	M16	0.00~	C ~	71EAD3871D313 ~	80.00~	ZYL ~	1 ~	0.0~	0.00~	6273267
DIN69871 40 SRKIN25X100CX	40	25.00	44.00	53.00	100.00	80.9	57.00	9.00	55.0	M16	M16	0.00~	C ~	71EAD3871D313 ~	999.00~	ZYL ~	1 ~	0.0~	0.00~	6273268
DIN69871 50 SRKIN 6X80 CX	50	6.00	21.00	27.00	80.00	61.0	38.00	10.00	34.0	M24	M5	0.00~	C ~	71EAD3871D313 ~	80.00~	ZYL ~	1 ~	0.0~	0.00~	6273269	Balance to G2.5 at 20,000 RPM
DIN69871 50 SRKIN 8X80 CX	50	8.00	21.00	27.00	80.00	60.9	38.00	10.00	34.0	M24	M6	0.00~	C ~	71EAD3871D313 ~	999.00~	ZYL ~	1 ~	0.0~	0.00~	6273270	Balance to G2.5 at 20,000 RPM
DIN69871 50 SRKIN 10X80CX	50	10.00	24.00	32.00	80.00	60.9	51.00	9.00	40.0	M24	M8	0.00~	C ~	71EAD3871D313 ~	80.00~	ZYL ~	1 ~	0.0~	0.00~	6273272	Balance to G2.5 at 20,000 RPM
DIN69871 50 SRKIN 12X80CX	50	12.00	24.00	32.00	80.00	60.9	51.00	9.00	45.0	M24	M10	0.00~	C ~	71EAD3871D313 ~	80.00~	ZYL ~	1 ~	0.0~	0.00~	6273273	Balance to G2.5 at 20,000 RPM
DIN69871 50 SRKIN 14X80CX	50	14.00	27.00	34.00	80.00	60.9	45.00	9.00	45.0	M24	M10	2.97~	C ~	71EAD3871D313 ~	999.00~	ZYL ~	1 ~	0.0~	0.00~	6265064	Balance to G2.5 at 20,000 RPM
DIN69871 50 SRKIN 16X80CX	50	16.00	27.00	34.00	80.00	60.9	45.00	9.00	48.0	M24	M12	0.00~	C ~	71EAD3871D313 ~	80.00~	ZYL ~	1 ~	0.0~	0.00~	6273274	Balance to G2.5 at 20,000 RPM
DIN69871 50 SRKIN 18X80CX	50	18.00	33.00	42.00	80.00	60.9	57.00	9.00	48.0	M24	M12	0.00~	C ~	71EAD3871D313 ~	999.00~	ZYL ~	1 ~	0.0~	0.00~	6273275	Balance to G2.5 at 20,000 RPM
DIN69871 50 SRKIN 20X80CX	50	20.00	33.00	42.00	80.00	60.9	57.00	9.00	49.0	M24	M16	0.00~	C ~	71EAD3871D313 ~	80.00~	ZYL ~	1 ~	0.0~	0.00~	6273276	Balance to G2.5 at 20,000 RPM
DIN69871 50 SRKIN25X100CX	50	25.00	44.00	53.00	100.00	80.9	57.00	9.00	55.0	M24	M16	0.00~	C ~	71EAD3871D313 ~	100.00~	ZYL ~	1 ~	0.0~	0.00~	6273277	Balance to G2.5 at 20,000 RPM
DIN69871 50 SRKIN32X100CX	50	32.00	44.00	53.00	100.00	80.9	57.00	9.00	59.0	M24	M16	0.00~	C ~	71EAD3871D313 ~	100.00~	ZYL ~	1 ~	0.0~	0.00~	6273278	Balance to G2.5 at 20,000 RPM

Only use inductive heating device for T-SHRINK holders
