Turning
Main Application

MDJNR/L : Multi lock type holders with 93° approach angle for negative 55° Rhombic inserts

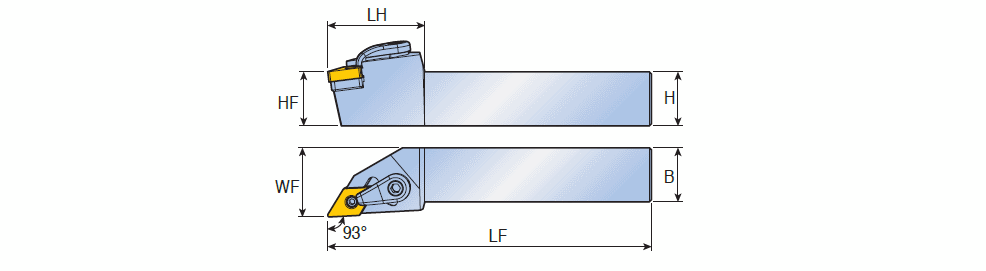

Right-hand shown

Right-hand shown

  DesignationHF H B LF LH WF IC t Kr KAPR CL Tool typ HAND ClssID MIID IIC IIC_2 IIC_3 IIC_4 IIC_5 GICATGIREMgiicGICODE
  MDJNL 2020 K15 20.020.020.0125.0045.025.0012.70~4.76~27~93.0~Multi Lock ~SQUARE ~L ~71E01A0E85121 ~DNGA 150408 IS$$231914955097111 ~IS$$383577274516228 ~IS$$493442649564267 ~IS$$581084907694694 ~ ~3600077 0
  MDJNR 2020 K15 20.020.020.0125.0045.025.0012.70~4.76~27~93.0~Multi Lock ~SQUARE ~R ~71E01A0E85121 ~DNGA 150408 IS$$242400693101226 ~IS$$383577274516228 ~IS$$493442649564267 ~IS$$581084907694694 ~ ~3600078 0
  MDJNR 2020 K15A 20.020.020.0125.0045.025.0012.70~6.35~27~93.0~Multi Lock ~SQUARE ~R ~71E01A0E85121 ~DNGA 150608 IS$$384556734858845 ~IS$$607984142147679 ~IS$$695105559106321 ~IS$$808521261787470 ~IS$$850587966573147 ~3602102 0
  MDJNL 2525 M15A 25.025.025.0150.0045.032.0012.70~6.35~27~93.0~Multi Lock ~SQUARE ~L ~71E01A0E85121 ~DNGA 150608 IS$$401217296969863 ~IS$$607984142147679 ~IS$$695105559106321 ~IS$$808521261787470 ~IS$$850587966573147 ~3602105 0
  MDJNR 2525 M15A 25.025.025.0150.0045.032.0012.70~6.35~27~93.0~Multi Lock ~SQUARE ~R ~71E01A0E85121 ~DNGA 150608 IS$$384556734858845 ~IS$$607984142147679 ~IS$$695105559106321 ~IS$$808521261787470 ~IS$$850587966573147 ~3602104 0
  MDJNL 3232 P15A 32.032.032.0170.0045.040.0012.70~6.35~27~93.0~Multi Lock ~SQUARE ~L ~71E01A0E85121 ~DNGA 150608 IS$$401217296969863 ~IS$$607984142147679 ~IS$$695105559106321 ~IS$$808521261787470 ~IS$$850587966573147 ~3604973 0
  MDJNR 3232 P15A 32.032.032.0170.0045.040.0012.70~6.35~27~93.0~Multi Lock ~SQUARE ~R ~71E01A0E85121 ~DNGA 150608 IS$$384556734858845 ~IS$$607984142147679 ~IS$$695105559106321 ~IS$$808521261787470 ~IS$$850587966573147 ~3602106 0
15A:DN.. 1506
15: DN.. 1504
