TaeguTec Cutting Tools - Metal Working Tools - Tooling System -

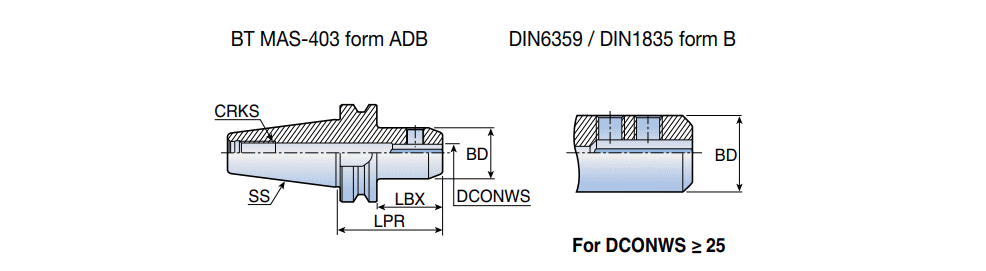

BT-EM-CX : CX coolant type end mill holders

Designation	SS	DCONWS	BD	LPR	LBX	CRKS		Shank	ClssID	LTA	CCTWS	CCFWS	LS	DF	GICAT
BT40 EM 6X50 CX	40	6.00	25.00	50.00	23.0	M16	0.00~	C ~	71EAD3871D313 ~	999.00~	ZYL ~	10 ~	0.0~	0.00~	6273216
BT40 EM 8X50 CX	40	8.00	28.00	50.00	23.0	M16	0.00~	C ~	71EAD3871D313 ~	999.00~	ZYL ~	10 ~	0.0~	0.00~	6273217
BT40 EM 10X63 CX	40	10.00	35.00	63.00	36.0	M16	0.00~	C ~	71EAD3871D313 ~	999.00~	ZYL ~	10 ~	0.0~	0.00~	6273218
BT40 EM 12X63 CX	40	12.00	42.00	63.00	36.0	M16	0.00~	C ~	71EAD3871D313 ~	999.00~	ZYL ~	10 ~	0.0~	0.00~	6273219
BT40 EM 16X63 CX	40	16.00	48.00	63.00	36.0	M16	0.00~	C ~	71EAD3871D313 ~	999.00~	ZYL ~	10 ~	0.0~	0.00~	6273220
BT40 EM 20X63 CX	40	20.00	52.00	63.00	36.0	M16	0.00~	C ~	71EAD3871D313 ~	999.00~	ZYL ~	10 ~	0.0~	0.00~	6273222
BT40 EM 25X45 CX	40	25.00	61.00	45.00	18.0	M16	0.00~	C ~	71EAD3871D313 ~	999.00~	ZYL ~	10 ~	0.0~	0.00~	6273224
BT40 EM 25X90 CX	40	25.00	65.00	90.00	63.0	M16	0.00~	C ~	71EAD3871D313 ~	999.00~	ZYL ~	10 ~	0.0~	0.00~	6273225
BT40 EM 32X100 CX	40	32.00	72.00	100.00	65.0	M16	0.00~	C ~	71EAD3871D313 ~	999.00~	ZYL ~	10 ~	0.0~	0.00~	6273226
BT50 EM 12X80 CX	50	12.00	42.00	80.00	42.0	M24	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	10 ~	0.0~	0.00~	6273227
BT50 EM 16X80 CX	50	16.00	48.00	80.00	42.0	M24	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	10 ~	0.0~	0.00~	6273228
BT50 EM 20X80 CX	50	20.00	52.00	80.00	42.0	M24	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	10 ~	0.0~	0.00~	6273229
BT50 EM 25X100 CX	50	25.00	65.00	100.00	62.0	M24	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	10 ~	0.0~	0.00~	6273230
BT50 EM 32X105 CX	50	32.00	72.00	105.00	67.0	M24	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	10 ~	0.0~	0.00~	6273231
BT50 EM 40X110 CX	50	40.00	80.00	110.00	72.0	M24	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	10 ~	0.0~	0.00~	6273232
