TaeguTec Cutting Tools - Metal Working Tools - Tooling System -

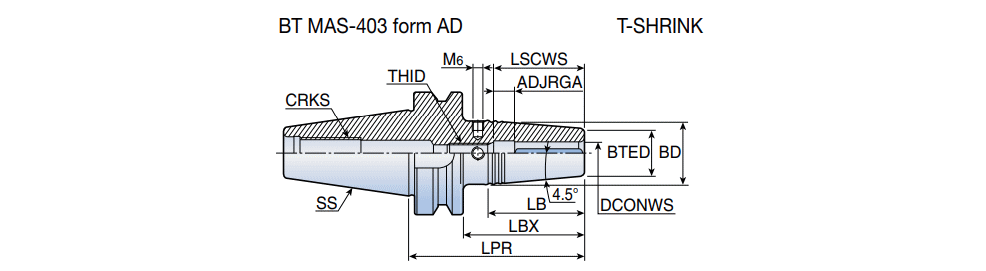

BT-SRKIN-CX : CX coolant type thermal shrinking chucks

Designation	SS	DCONWS	BTED	BD	LPR	LBX	LB	ADJRGA	LSCWS	CRKS	THID	Wrench		Shank	ClssID	LTA	CCTWS	CCFWS	LS	DF	GICAT	GIREM
BT40 SRKIN 6X90 CX	40	6.00	21.00	27.00	90.00	63.0	38.00	10.00	34.0	M16	M5	2.50	0.00~	C ~	71EAD3871D313 ~	90.00~	ZYL ~	01 ~	0.0~	63.00~	6273309
BT40 SRKIN 8X90 CX	40	8.00	21.00	27.00	90.00	63.0	38.00	10.00	34.0	M16	M6	3.00	0.00~	C ~	71EAD3871D313 ~	90.00~	ZYL ~	01 ~	0.0~	63.00~	6273310
BT40 SRKIN 10X90 CX	40	10.00	24.00	32.00	90.00	63.0	50.80	9.00	40.0	M16	M8	4.00	0.00~	C ~	71EAD3871D313 ~	90.00~	ZYL ~	01 ~	0.0~	63.00~	6273311
BT40 SRKIN 12X90 CX	40	12.00	24.00	32.00	90.00	63.0	50.80	9.00	45.0	M16	M10	5.00	0.00~	C ~	71EAD3871D313 ~	90.00~	ZYL ~	01 ~	0.0~	63.00~	6273312
BT40 SRKIN 14X90 CX	40	14.00	27.00	34.00	90.00	63.0	44.50	9.00	45.0	M16	M10	5.00	0.00~	C ~	71EAD3871D313 ~	90.00~	ZYL ~	01 ~	0.0~	63.00~	6273313
BT40 SRKIN 16X90 CX	40	16.00	27.00	34.00	90.00	63.0	44.50	9.00	48.0	M16	M12	6.00	0.00~	C ~	71EAD3871D313 ~	90.00~	ZYL ~	01 ~	0.0~	63.00~	6273314
BT40 SRKIN 20X90 CX	40	20.00	33.00	42.00	90.00	63.0	57.00	9.00	49.0	M16	M16	8.00	0.00~	C ~	71EAD3871D313 ~	90.00~	ZYL ~	01 ~	0.0~	63.00~	6273315
BT40 SRKIN 25X110 CX	40	25.00	44.00	53.00	110.00	83.0	57.00	9.00	55.0	M16	M16	8.00	0.00~	C ~	71EAD3871D313 ~	110.00~	ZYL ~	01 ~	0.0~	63.00~	6273316
BT50 SRKIN 6X100 CX	50	6.00	21.00	27.00	100.00	62.0	38.10	10.00	33.9	M24	M5	2.50	0.00~	C ~	71EAD3871D313 ~	100.00~	ZYL ~	01 ~	0.0~	100.00~	6273317	Balance to G2.5 at 20,000 RPM
BT50 SRKIN 8X100 CX	50	8.00	21.00	27.00	100.00	62.0	38.00	10.00	34.0	M24	M6	3.00	0.00~	C ~	71EAD3871D313 ~	100.00~	ZYL ~	01 ~	0.0~	100.00~	6273318	Balance to G2.5 at 20,000 RPM
BT50 SRKIN 10X100 CX	50	10.00	24.00	32.00	100.00	62.0	50.80	9.00	40.0	M24	M8	4.00	0.00~	C ~	71EAD3871D313 ~	100.00~	ZYL ~	01 ~	0.0~	100.00~	6273319	Balance to G2.5 at 20,000 RPM
BT50 SRKIN 12X100 CX	50	12.00	24.00	32.00	100.00	62.0	50.80	9.00	45.0	M24	M10	5.00	0.00~	C ~	71EAD3871D313 ~	100.00~	ZYL ~	01 ~	0.0~	100.00~	6273320	Balance to G2.5 at 20,000 RPM
BT50 SRKIN 14X100 CX	50	14.00	27.00	34.00	100.00	62.0	44.50	9.00	45.0	M24	M10	5.00	0.00~	C ~	71EAD3871D313 ~	100.00~	ZYL ~	01 ~	0.0~	100.00~	6273321	Balance to G2.5 at 20,000 RPM
BT50 SRKIN 16X100 CX	50	16.00	27.00	34.00	100.00	62.0	44.50	9.00	48.0	M24	M12	6.00	0.00~	C ~	71EAD3871D313 ~	100.00~	ZYL ~	01 ~	0.0~	100.00~	6273322	Balance to G2.5 at 20,000 RPM
BT50 SRKIN 20X100 CX	50	20.00	33.00	42.00	100.00	62.0	57.00	9.00	49.0	M24	M16	8.00	0.00~	C ~	71EAD3871D313 ~	100.00~	ZYL ~	01 ~	0.0~	100.00~	6273323	Balance to G2.5 at 20,000 RPM
BT50 SRKIN 25X120 CX	50	25.00	44.00	53.00	120.00	82.0	57.00	9.00	55.0	M24	M16	8.00	0.00~	C ~	71EAD3871D313 ~	120.00~	ZYL ~	01 ~	0.0~	100.00~	6273324	Balance to G2.5 at 20,000 RPM
BT50 SRKIN 32X120 CX	50	32.00	44.00	53.00	120.00	82.0	57.00	9.00	59.0	M24	M16	8.00	0.00~	C ~	71EAD3871D313 ~	120.00~	ZYL ~	01 ~	0.0~	100.00~	6273327	Balance to G2.5 at 20,000 RPM

Only use inductive heating device for T-SHRINK holders
