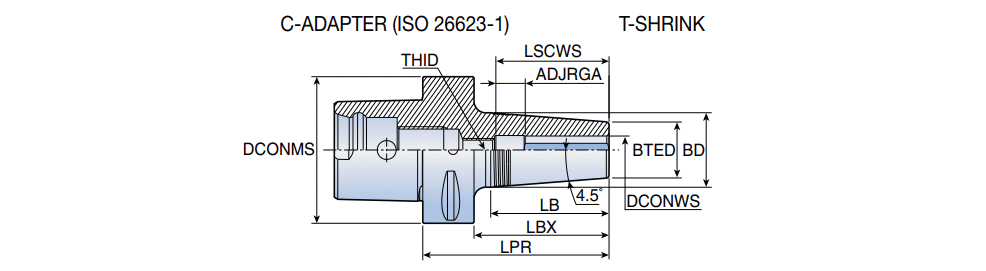

C-SRKIN-CX : CX coolant type thermal shrinking chucks

Designation	DCONMS	DCONWS	BTED	BD	LPR	LBX	LB	ADJRGA	LSCWS	THID	Wrench		S1	L2	Shank	ClssID	LTA	CCTWS	CCFWS	GICAT
C6 SRKIN 6X80 CX	63	6.00	21.00	27.00	80.00	58.0	38.10	10.00	34.0	M5	2.50	0.00~	0.00~	0.00~	C ~	71EAD3871D313 ~	80.00~	ZYL ~	1 ~	6273344
C6 SRKIN 8X80 CX	63	8.00	21.00	27.00	80.00	58.0	38.10	10.00	34.0	M6	3.00	0.00~	0.00~	0.00~	C ~	71EAD3871D313 ~	80.00~	ZYL ~	1 ~	6273345
C6 SRKIN 10X80 CX	63	10.00	24.00	32.00	80.00	58.0	50.80	9.00	40.0	M8	4.00	0.00~	0.00~	0.00~	C ~	71EAD3871D313 ~	80.00~	ZYL ~	1 ~	6273346
C6 SRKIN 12X80 CX	63	12.00	24.00	32.00	80.00	58.0	50.80	9.00	45.0	M10	5.00	0.00~	0.00~	0.00~	C ~	71EAD3871D313 ~	80.00~	ZYL ~	1 ~	6273347
C6 SRKIN 14X85 CX	63	14.00	27.00	34.00	85.00	63.0	44.50	9.00	45.0	M10	5.00	0.00~	0.00~	0.00~	C ~	71EAD3871D313 ~	85.00~	ZYL ~	1 ~	6273348
C6 SRKIN 16X85 CX	63	16.00	27.00	34.00	85.00	63.0	44.50	9.00	48.0	M12	6.00	0.00~	0.00~	0.00~	C ~	71EAD3871D313 ~	85.00~	ZYL ~	1 ~	6273349
C6 SRKIN 18X85 CX	63	18.00	33.00	42.00	85.00	63.0	57.20	9.00	48.0	M12	6.00	0.00~	0.00~	0.00~	C ~	71EAD3871D313 ~	85.00~	ZYL ~	1 ~	6273350
C6 SRKIN 20X85 CX	63	20.00	33.00	42.00	85.00	63.0	57.20	9.00	49.0	M16	8.00	0.00~	0.00~	0.00~	C ~	71EAD3871D313 ~	85.00~	ZYL ~	1 ~	6273351
C6 SRKIN 25X90 CX	63	25.00	44.00	53.00	90.00	68.0	57.20	9.00	55.0	M16	8.00	0.00~	0.00~	0.00~	C ~	71EAD3871D313 ~	90.00~	ZYL ~	1 ~	6273352
C6 SRKIN 32X95 CX	63	32.00	44.00	53.00	95.00	73.0	57.20	9.00	59.0	M16	8.00	0.00~	0.00~	0.00~	C ~	71EAD3871D313 ~	95.00~	ZYL ~	1 ~	6273353
C8 SRKIN 6X90 CX	80	6.00	21.00	27.00	90.00	60.0	38.10	9.00	34.0	M5	2.50	0.00~	0.00~	0.00~	C ~	71EAD3871D313 ~	90.00~	ZYL ~	1 ~	6273354
C8 SRKIN 8X90 CX	80	8.00	21.00	27.00	90.00	60.0	38.10	10.00	34.0	M6	3.00	0.00~	0.00~	0.00~	C ~	71EAD3871D313 ~	90.00~	ZYL ~	1 ~	6273355
C8 SRKIN 10X90 CX	80	10.00	24.00	32.00	90.00	60.0	50.80	9.00	40.0	M8	4.00	0.00~	0.00~	0.00~	C ~	71EAD3871D313 ~	90.00~	ZYL ~	1 ~	6273356
C8 SRKIN 12X120 CX	80	12.00	24.00	32.00	120.00	90.0	50.80	9.00	45.0	M10	5.00	0.00~	0.00~	0.00~	C ~	71EAD3871D313 ~	120.00~	ZYL ~	1 ~	6273358
C8 SRKIN 12X160 CX	80	12.00	24.00	32.00	160.00	130.0	50.80	9.00	45.0	M10	5.00	0.00~	0.00~	0.00~	C ~	71EAD3871D313 ~	160.00~	ZYL ~	1 ~	6273359
C8 SRKIN 12X90 CX	80	12.00	24.00	32.00	90.00	60.0	50.80	9.00	45.0	M10	5.00	0.00~	0.00~	0.00~	C ~	71EAD3871D313 ~	90.00~	ZYL ~	1 ~	6273357
C8 SRKIN 16X120 CX	80	16.00	27.00	34.00	120.00	90.0	44.50	9.00	48.0	M12	6.00	0.00~	0.00~	0.00~	C ~	71EAD3871D313 ~	120.00~	ZYL ~	1 ~	6273361
C8 SRKIN 16X160 CX	80	16.00	27.00	34.00	160.00	130.0	44.50	9.00	48.0	M12	6.00	0.00~	0.00~	0.00~	C ~	71EAD3871D313 ~	160.00~	ZYL ~	1 ~	6273362
C8 SRKIN 16X95 CX	80	16.00	27.00	34.00	95.00	65.0	44.50	9.00	48.0	M12	6.00	0.00~	0.00~	0.00~	C ~	71EAD3871D313 ~	95.00~	ZYL ~	1 ~	6273360
C8 SRKIN 20X95 CX	80	20.00	33.00	42.00	95.00	65.0	57.20	9.00	49.0	M16	8.00	0.00~	0.00~	0.00~	C ~	71EAD3871D313 ~	95.00~	ZYL ~	1 ~	6273363
C8 SRKIN 25X100 CX	80	25.00	44.00	53.00	100.00	70.0	57.20	9.00	55.0	M16	8.00	0.00~	0.00~	0.00~	C ~	71EAD3871D313 ~	100.00~	ZYL ~	1 ~	6273364
C8 SRKIN 32X115 CX	80	32.00	44.00	53.00	115.00	85.0	57.20	9.00	59.0	M16	8.00	0.00~	0.00~	0.00~	C ~	71EAD3871D313 ~	999.00~	ZYL ~	1 ~	6273365

Only use inductive heating device for T-SHRINK holders
