TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

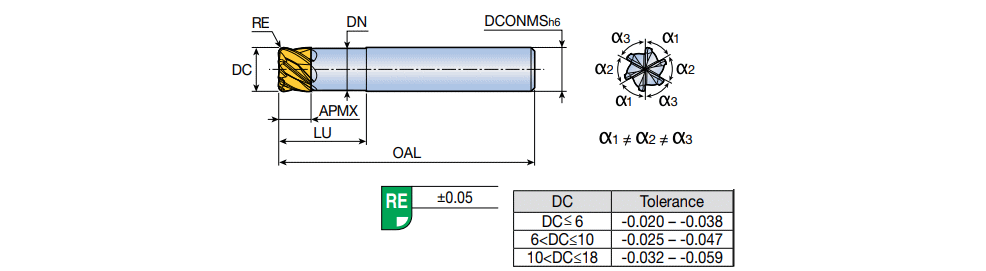

CRFB 6 : 6 flute, ceramic brazed end mills

Designation	Tool sty	DC	RE	OAL	APMX	LU	DN	DCONMS	NOF	Type	Machine	H.A	Shank	Rd	fz (min)	fz (max)	d	ClssID	CCTMS	CCFMS	GRDMFG	ISYC	LPR	LTA	GICAT	giic	Grade & Vc Click on grade for cutting speed value
CRFB 6060 050 120	SOLID TYPE ~	6.00	0.50	50.00	4.50	12.0	5.80	6.00	6~	~	~	0.0~	~	40.00~	0.020	0.030	6.00~	71E01A05D27A8 ~	ZYL ~	01 ~	TC3030~	303-02 ~	0.00~	0.00~	6262197	1	TC3030
CRFB 6080 100 160	SOLID TYPE ~	8.00	1.00	57.00	6.00	16.0	7.70	8.00	6~	~	~	0.0~	~	40.00~	0.020	0.030	8.00~	71E01A05D27A8 ~	ZYL ~	01 ~	TC3030~	303-02 ~	0.00~	0.00~	6262198	1	TC3030
CRFB 6100 100 200	SOLID TYPE ~	10.00	1.00	63.00	7.50	20.0	9.60	10.00	6~	~	~	0.0~	~	40.00~	0.020	0.040	10.00~	71E01A05D27A8 ~	ZYL ~	01 ~	TC3030~	303-02 ~	0.00~	0.00~	6262199	1	TC3030
CRFB 6120 150 240	SOLID TYPE ~	12.00	1.50	70.00	9.00	24.0	11.50	12.00	6~	~	~	0.0~	~	40.00~	0.030	0.050	12.00~	71E01A05D27A8 ~	ZYL ~	01 ~	TC3030~	303-02 ~	0.00~	0.00~	6262200	1	TC3030
CRFB 6160 200 320	SOLID TYPE ~	16.00	2.00	83.00	12.00	32.0	15.50	16.00	6~	~	~	0.0~	~	40.00~	0.030	0.050	16.00~	71E01A05D27A8 ~	ZYL ~	01 ~	TC3030~	303-02 ~	0.00~	0.00~	6262201	1	TC3030

For recommended machining condition & machining guide, please click on "More Info".
