TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

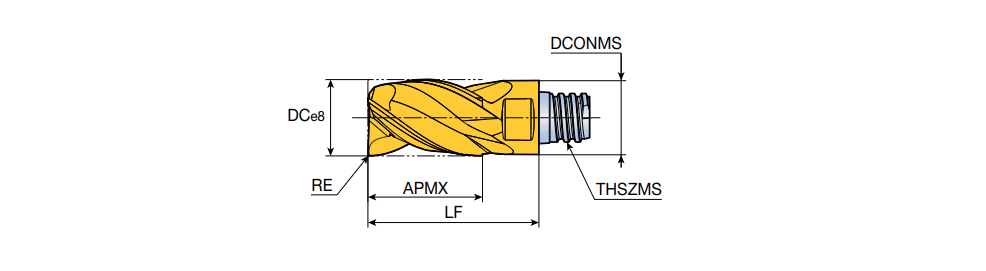

MXDM : 3 flute, drill-mill heads

Designation	Tool sty	DC	RE	APMX	LF	THSZMS	DCONMS	H.A	Rd	fz (min)	fz (max)	NOF	ClssID	CCTMS	CCFMS	GRDMFG	ISYC	LPR	LTA	GICAT	giic	Grade & Vc Click on grade for cutting speed value
MXDM100L15R02-03S06	HEAD TYPE ~	10.00	0.20	15.00	22.00	S06	9.70	0.0~	0.00~	0.025	0.080	3~	71E01A05D27A8 ~	SAI ~	1 ~	TT5523~	303-02 ~	0.00~	22.00~	6267077	1	TT5523
MXDM120L18R02-03S08	HEAD TYPE ~	12.00	0.20	18.00	27.00	S08	11.70	0.0~	0.00~	0.025	0.100	3~	71E01A05D27A8 ~	SAI ~	1 ~	TT5523~	303-02 ~	0.00~	27.00~	6274349	1	TT5523
MXDM160L24R02-03S10	HEAD TYPE ~	16.00	0.20	24.00	33.50	S10	15.30	0.0~	0.00~	0.030	0.120	3~	71E01A05D27A8 ~	SAI ~	1 ~	TT5523~	303-02 ~	0.00~	33.50~	6274350	1	TT5523
MXDM200L30R02-03S12	HEAD TYPE ~	20.00	0.20	30.00	41.00	S12	18.45	0.0~	0.00~	0.040	0.160	3~	71E01A05D27A8 ~	SAI ~	1 ~	TT5523~	303-02 ~	0.00~	41.00~	6274351	1	TT5523

Wrench should be ordered separately
