TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

SDM : 3 flute, drill-mills

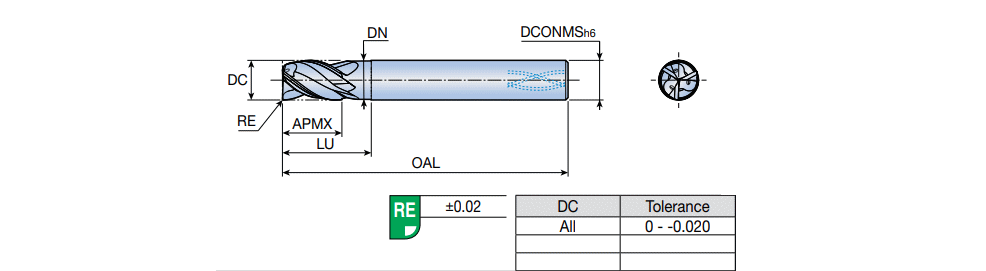

Designation	Tool sty	DC	RE	OAL	APMX	LU	DN	DCONMS	H.A	Shank	Rd	fz (min)	fz (max)	Flute	ClssID	CCTMS	CCFMS	GRDMFG	ISYC	LPR	LTA	NOF	GICAT	giic	Grade & Vc Click on grade for cutting speed value
SDM 3100X15X72R0.2	SOLID TYPE ~	10.00	0.20	72.00	15.00	30.0	9.60	10.00	0.0~	C ~	0.00~	0.025	0.080	3~	71E01A05D27A8 ~	SAI ~	1 ~	TT5525~	303-02 ~	0.00~	32.00~	3~	6267508	1	TT5525
SDM 3120X18X83R0.2	SOLID TYPE ~	12.00	0.20	83.00	18.00	36.0	11.70	12.00	0.0~	C ~	0.00~	0.025	0.100	3~	71E01A05D27A8 ~	SAI ~	1 ~	TT5525~	303-02 ~	0.00~	38.00~	3~	6274344	1	TT5525
SDM 3160X24X92R0.2	SOLID TYPE ~	16.00	0.20	92.00	24.00	40.0	15.30	16.00	0.0~	C ~	0.00~	0.030	0.120	3~	71E01A05D27A8 ~	SAI ~	1 ~	TT5525~	303-02 ~	0.00~	44.00~	3~	6274345	1	TT5525
SDM 3200X30X110R0.2	SOLID TYPE ~	20.00	0.20	110.00	30.00	55.0	18.30	20.00	0.0~	C ~	0.00~	0.040	0.160	3~	71E01A05D27A8 ~	SAI ~	1 ~	TT5525~	303-02 ~	0.00~	60.00~	3~	6274346	1	TT5525
