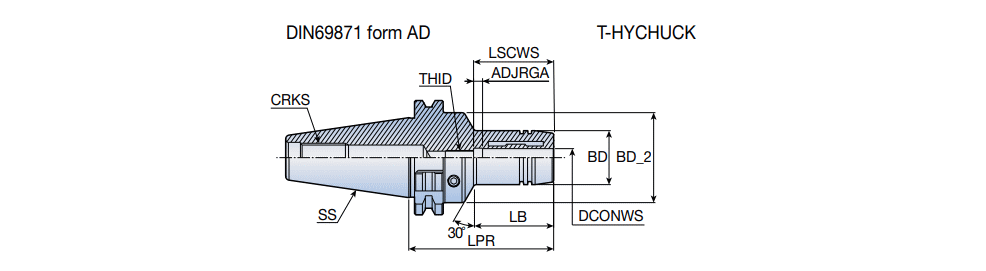

DIN69871-THCG (General type) : Hydraulic chucks with DIN 69871 form AD taper shanks

Designation	SS	DCONWS	BD	BD_2	LPR	LB	ADJRGA	LSCWS	THID	CRKS	Wrench	S1	Shank	ClssID	LTA	CCTWS	CCFWS	LS	DF	GICAT
DIN69871 40 THCG 6-80.5	40	6.00	26.00	50.00	80.50	44.00	10.00	37.5	M5X0.8	M16	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	0.00~	6282274
DIN69871 40 THCG 8-80.5	40	8.00	28.00	50.00	80.50	44.00	10.00	37.5	M6X1.0	M16	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	0.00~	6282252
DIN69871 40 THCG 10-80.5	40	10.00	30.00	50.00	80.50	44.00	10.00	42.5	M8X1.0	M16	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	0.00~	6282253
DIN69871 40 THCG 12-80.5	40	12.00	32.00	50.00	80.50	44.00	10.00	47.5	M10X1.0	M16	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	0.00~	6282254
DIN69871 40 THCG 16-80.5	40	16.00	38.00	50.00	80.50	48.00	10.00	52.5	M12X1.0	M16	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	0.00~	6282255
DIN69871 40 THCG 20-80.5	40	20.00	42.00	50.00	80.50	48.00	10.00	52.5	M16X1.0	M16	5.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	0.00~	6282256
DIN69871 40 THCG 25-80.5	40	25.00	55.00	66.00	80.50	26.00	10.00	61.0	M16X1.0	M16	5.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	0.00~	6282257
DIN69871 40 THCG 32-80.5	40	32.00	62.00	80.00	80.50	26.00	10.00	65.0	M16X1.0	M16	5.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	0.00~	6282258

-Consult the user guide for relevant information including: insertion depth and proper use
-Clamping wrench should be ordered separately
Hex size 4.0 : T-W 4 & THC-4.0(5.5NM)
Hex size 5.0 : T-W 5 & THC-5.0(5.5NM)
