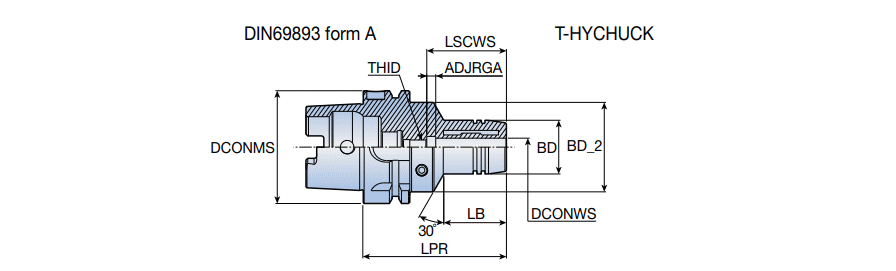

HSK A-THCG (General type) : Hydraulic chucks with HSK DIN 69893 form A taper shanks

Designation	DCONMS	DCONWS	BD	BD_2	LPR	LB	ADJRGA	LSCWS	THID	Wrench	S1	Shank	ClssID	LTA	CCTWS	CCFWS	GICAT
HSK A 63 THCG 6-70	63	6.00	26.00	50.00	70.00	24.00	10.00	37.5	M5X0.8	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6282222
HSK A 63 THCG 8-70	63	8.00	28.00	50.00	70.00	24.00	10.00	37.5	M6X1.0	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6282223
HSK A 63 THCG 10-80	63	10.00	30.00	50.00	80.00	35.00	10.00	42.5	M8X1.0	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6282224
HSK A 63 THCG 12-85	63	12.00	32.00	50.00	85.00	40.00	10.00	47.5	M10X1.0	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6282225
HSK A 63 THCG 16-90	63	16.00	38.00	50.00	90.00	46.00	10.00	52.5	M12X1.0	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6282226
HSK A 63 THCG 20-90	63	20.00	42.00	50.00	90.00	48.00	10.00	52.5	M16X1.0	5.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6282227
HSK A 63 THCG 25-120	63	25.00	50.00	-	120.00	-	10.00	61.0	M16X1.0	5.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6282228
HSK A 63 THCG 32-125	63	32.00	60.00	52.50	125.00	-	10.00	65.0	M16X1.0	5.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6282229
HSK A 100 THCG 6-160	100	6.00	26.00	50.00	160.00	104.00	10.00	37.5	M5X0.8	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6283963
HSK A 100 THCG 6-200	100	6.00	26.00	50.00	200.00	144.00	10.00	37.5	M5X0.8	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6283973
HSK A 100 THCG 8-160	100	8.00	28.00	50.00	160.00	104.00	10.00	37.5	M6X1.0	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6283964
HSK A 100 THCG 8-200	100	8.00	28.00	50.00	200.00	144.00	10.00	37.5	M6X1.0	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6283974
HSK A 100 THCG 10-160	100	10.00	30.00	50.00	160.00	105.00	10.00	42.5	M8X1.0	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6283965
HSK A 100 THCG 10-200	100	10.00	30.00	50.00	200.00	145.00	10.00	42.5	M8X1.0	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6283975
HSK A 100 THCG 12-160	100	12.00	32.00	50.00	160.00	105.00	10.00	47.5	M10X1.0	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6283966
HSK A 100 THCG 12-200	100	12.00	32.00	50.00	200.00	145.00	10.00	47.5	M10X1.0	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6283976
HSK A 100 THCG 14-160	100	14.00	34.00	50.00	160.00	107.00	10.00	47.5	M10X1.0	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6283967
HSK A 100 THCG 14-200	100	14.00	34.00	50.00	200.00	147.00	10.00	47.5	M10X1.0	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6283977
HSK A 100 THCG 16-160	100	16.00	38.00	50.00	160.00	107.00	10.00	52.5	M12X1.0	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6283968
HSK A 100 THCG 16-200	100	16.00	38.00	50.00	200.00	147.00	10.00	52.5	M12X1.0	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6283978
HSK A 100 THCG 18-160	100	18.00	40.00	50.00	160.00	108.00	10.00	52.5	M12X1.0	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6283969
HSK A 100 THCG 18-200	100	18.00	40.00	50.00	200.00	148.00	10.00	52.5	M12X1.0	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6283979
HSK A 100 THCG 20-160	100	20.00	42.00	50.00	160.00	108.00	10.00	52.5	M16X1.0	5.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6283970
HSK A 100 THCG 20-200	100	20.00	42.00	50.00	200.00	148.00	10.00	52.5	M16X1.0	5.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6283980
HSK A 100 THCG 25-160	100	25.00	57.00	63.00	160.00	110.00	10.00	61.0	M16X1.0	5.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6283971
HSK A 100 THCG 25-200	100	25.00	57.00	63.00	200.00	150.00	10.00	61.0	M16X1.0	5.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6283981
HSK A 100 THCG 32-160	100	32.00	63.00	75.00	160.00	110.00	10.00	65.0	M16X1.0	5.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6283972
HSK A 100 THCG 32-200	100	32.00	63.00	75.00	200.00	150.00	10.00	65.0	M16X1.0	5.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6283982

-Consult the user guide for relevant information including: insertion depth and proper use
-Clamping wrench should be ordered separately
Hex size 4.0 : T-W 4 & THC-4.0(5.5NM)
Hex size 5.0 : T-W 5 & THC-5.0(5.5NM)
