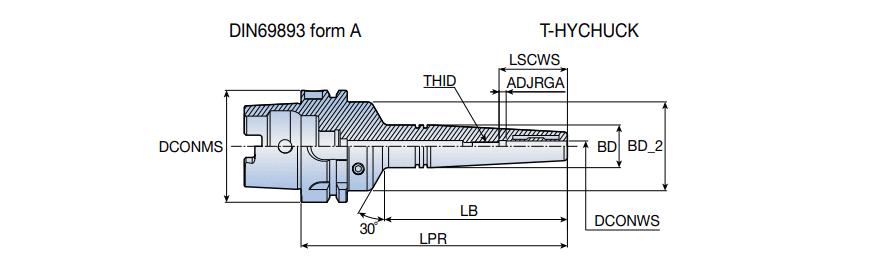

HSK A-THCS (Slim type) : Hydraulic chucks with HSK DIN 69893 form A taper shanks

Designation	DCONMS	DCONWS	BD	BD_2	LPR	LB	ADJRGA	LSCWS	THID	Wrench	S1	Shank	ClssID	LTA	CCTWS	CCFWS	GICAT
HSK A 63 THCS 6-150	63	6.00	24.00	50.00	150.00	103.00	10.00	37.5	M5X0.8	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6282259
HSK A 63 THCS 10-150	63	10.00	28.00	50.00	150.00	104.00	10.00	42.5	M8X1.0	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6282260
HSK A 63 THCS 12-150	63	12.00	30.00	50.00	150.00	105.00	10.00	47.5	M10X1.0	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6282261
HSK A 100 THCS 6-180	100	6.00	24.00	50.00	180.00	120.00	10.00	37.5	M5X0.8	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6283983
HSK A 100 THCS 8-180	100	8.00	26.00	50.00	180.00	120.00	10.00	37.5	M6X1.0	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6283984
HSK A 100 THCS 10-180	100	10.00	28.00	50.00	180.00	120.00	10.00	42.5	M8X1.0	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6283985
HSK A 100 THCS 12-180	100	12.00	30.00	50.00	180.00	120.00	10.00	47.5	M10X1.0	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6283986
HSK A 100 THCS 14-180	100	14.00	32.00	50.00	180.00	121.00	10.00	47.5	M10X1.0	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6283987
HSK A 100 THCS 16-180	100	16.00	34.00	50.00	180.00	121.00	10.00	52.5	M12X1.0	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6283988
HSK A 100 THCS 18-180	100	18.00	36.00	50.00	180.00	122.00	10.00	52.5	M12X1.0	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6283989
HSK A 100 THCS 20-180	100	20.00	38.00	50.00	180.00	122.00	10.00	52.5	M16X1.0	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	6283990

-Consult the user guide for relevant information including: insertion depth and proper use
-Clamping wrench should be ordered separately
Hex size 4.0 : T-W 4 & THC-4.0(5.5NM)
Hex size 5.0 : T-W 5 & THC-5.0(5.5NM)
