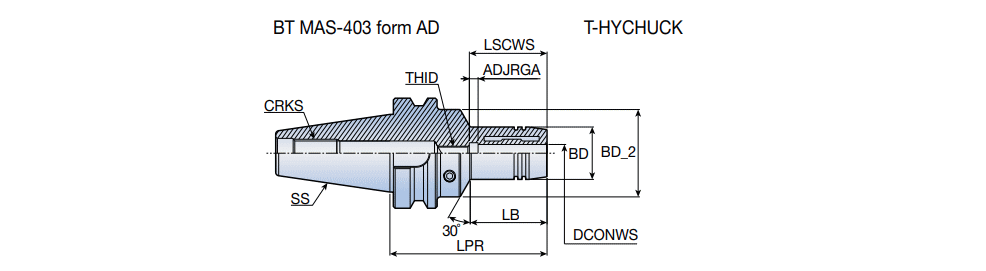

BT-THCG (General type) : Hydraulic chucks with BT MAS-403 form AD taper shanks

Designation	SS	DCONWS	BD	BD_2	LPR	LB	ADJRGA	LSCWS	THID	CRKS	Wrench	S1	Shank	ClssID	LTA	CCTWS	CCFWS	LS	CCTWS_2	CCFWS_2	DF	GICAT
BT30 THCG 6-70	30	6.00	26.00	44.50	70.00	28.00	10.00	37.5	M5X0.8	M12	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	HYD ~	01 ~	0.00~	6282230
BT30 THCG 8-70	30	8.00	28.00	44.50	70.00	28.00	10.00	37.5	M6X1.0	M12	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	HYD ~	01 ~	0.00~	6282231
BT30 THCG 10-75	30	10.00	30.00	44.50	75.00	36.00	10.00	42.5	M8X1.0	M12	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	HYD ~	01 ~	0.00~	6282232
BT30 THCG 12-75	30	12.00	32.00	44.50	75.00	36.00	10.00	47.5	M10X1.0	M12	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	HYD ~	01 ~	0.00~	6282233
BT30 THCG 16-90	30	16.00	38.00	44.50	90.00	48.00	10.00	52.5	M12X1.0	M12	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	HYD ~	01 ~	0.00~	6282235
BT30 THCG 20-90	30	20.00	42.00	44.50	90.00	48.00	10.00	52.5	M16X1.0	M12	5.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	HYD ~	01 ~	0.00~	6282236
BT40 THCG 6-90	40	6.00	26.00	50.00	90.00	44.00	10.00	37.5	M5X0.8	M16	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	HYD ~	01 ~	0.00~	6282237
BT40 THCG 8-90	40	8.00	28.00	50.00	90.00	44.00	10.00	37.5	M6X1.0	M16	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	HYD ~	01 ~	0.00~	6282238
BT40 THCG 10-90	40	10.00	30.00	50.00	90.00	44.00	10.00	42.5	M8X1.0	M16	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	HYD ~	01 ~	0.00~	6282239
BT40 THCG 12-90	40	12.00	32.00	50.00	90.00	44.00	10.00	47.5	M10X1.0	M16	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	HYD ~	01 ~	0.00~	6282240
BT40 THCG 16-90	40	16.00	38.00	50.00	90.00	48.00	10.00	52.5	M12X1.0	M16	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	HYD ~	01 ~	0.00~	6282241
BT40 THCG 20-90	40	20.00	42.00	50.00	90.00	48.00	10.00	52.5	M16X1.0	M16	5.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	HYD ~	01 ~	0.00~	6282242
BT40 THCG 25-100	40	25.00	57.00	-	100.00	-	10.00	61.0	M16X1.0	M16	5.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	HYD ~	01 ~	0.00~	6282243
BT40 THCG 32-105	40	32.00	62.00	-	105.00	-	10.00	65.0	M16X1.0	M16	5.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	HYD ~	01 ~	0.00~	6282244
BT50 THCG 6-90	50	6.00	26.00	50.00	90.00	32.00	10.00	37.5	M5X0.8	M24	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	HYD ~	01 ~	0.00~	6282245
BT50 THCG 10-140	50	10.00	30.00	50.00	140.00	44.00	10.00	42.5	M8X1.0	M24	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	HYD ~	01 ~	0.00~	6283953
BT50 THCG 10-90	50	10.00	30.00	50.00	90.00	32.00	10.00	42.5	M8X1.0	M24	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	HYD ~	01 ~	0.00~	6282246
BT50 THCG 12-90	50	12.00	32.00	50.00	90.00	32.00	10.00	47.5	M10X1.0	M24	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	HYD ~	01 ~	0.00~	6282247
BT50 THCG 16-120	50	16.00	38.00	50.00	120.00	48.00	10.00	52.5	M12X1.0	M24	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	HYD ~	01 ~	0.00~	6283954
BT50 THCG 16-90	50	16.00	38.00	50.00	90.00	32.00	10.00	52.5	M12X1.0	M24	4.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	HYD ~	01 ~	0.00~	6282248
BT50 THCG 20-120	50	20.00	42.00	50.00	120.00	48.00	10.00	52.5	M16X1.0	M24	5.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	HYD ~	01 ~	0.00~	6283955
BT50 THCG 20-90	50	20.00	42.00	50.00	90.00	32.00	10.00	52.5	M16X1.0	M24	5.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	HYD ~	01 ~	0.00~	6282249
BT50 THCG 25-105	50	25.00	57.00	-	105.00	-	10.00	61.0	M16X1.0	M24	5.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	HYD ~	01 ~	0.00~	6282250
BT50 THCG 25-150	50	25.00	57.00	-	150.00	-	10.00	61.0	M16X1.0	M24	5.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	HYD ~	01 ~	0.00~	6283956
BT50 THCG 32-115	50	32.00	62.00	-	115.00	-	10.00	65.0	M16X1.0	M24	5.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	HYD ~	01 ~	0.00~	6282251
BT50 THCG 32-150	50	32.00	62.00	-	150.00	-	10.00	65.0	M16X1.0	M24	5.00	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	HYD ~	01 ~	0.00~	6283957

-Consult the user guide for relevant information including: insertion depth and proper use
-Clamping wrench should be ordered separately
Hex size 4.0 : T-W 4 & THC-4.0(5.5NM)
Hex size 5.0 : T-W 5 & THC-5.0(5.5NM)
