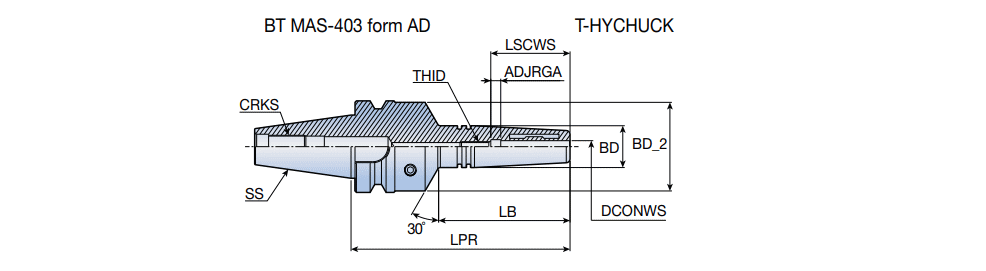

BT-THCS (Slim type) : Hydraulic chucks with BT MAS-403 form AD taper shanks

Designation	SS	DCONWS	BD	BD_2	LPR	LB	ADJRGA	LSCWS	THID	CRKS	S1	Shank	ClssID	LTA	CCTWS	CCFWS	LS	CCTWS_2	CCFWS_2	DF	GICAT
BT30 THCS 6-110	30	6.00	21.00	44.50	110.00	66.00	10.00	37.5	M5X0.8	M12	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	HYD ~	01 ~	0.00~	6282262
BT30 THCS 8-110	30	8.00	23.00	44.50	110.00	66.00	10.00	37.5	M6X1.0	M12	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	HYD ~	01 ~	0.00~	6282263
BT30 THCS 10-110	30	10.00	25.00	44.50	110.00	67.00	10.00	42.5	M8X1.0	M12	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	HYD ~	01 ~	0.00~	6282264
BT30 THCS 12-110	30	12.00	27.00	44.50	110.00	67.00	10.00	47.5	M10X1.0	M12	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	HYD ~	01 ~	0.00~	6282265
BT40 THCS 6-150	40	6.00	24.00	50.00	150.00	103.00	10.00	37.5	M5X0.8	M16	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	HYD ~	01 ~	0.00~	6282266
BT40 THCS 10-150	40	10.00	28.00	50.00	150.00	104.00	10.00	42.5	M8X1.0	M16	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	HYD ~	01 ~	0.00~	6282267
BT40 THCS 12-150	40	12.00	30.00	50.00	150.00	105.00	10.00	47.5	M10X1.0	M16	0.00~	C ~	71EAD3871D313 ~	0.00~	ZYL ~	01 ~	0.0~	HYD ~	01 ~	0.00~	6282268

-Consult the user guide for relevant information including: insertion depth and proper use
-Clamping wrench should be ordered separately
Hex size 4.0 : T-W 4 & THC-4.0(5.5NM)
Hex size 5.0 : T-W 5 & THC-5.0(5.5NM)
