TaeguTec Cutting Tools - Metal Working Tools - Thread Making -

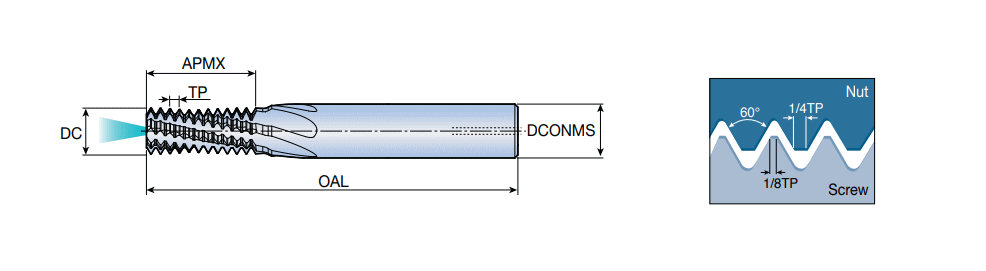

MTECBF-ISO : Solid carbide threading end mills with large number of flutes

Designation	TP	M coarse	M Fine	DCONMS	DC	APMX	OAL	NOF	Shank	HAND	ClssID	CCMS		CZCMS	FTDZ	fz (max)	fz (min)	LF	LTA	LU	THFT	TPI	TTP	TTP_DF2		ZAX	GRDMFG	GICAT	giic	Grade & Vc Click on grade for cutting speed value
MTECBF06048F101.0ISO	1.00	M6	=>7	6.00	4.80	10.20	58.00	6	C ~	R ~	71EF07E083383 ~	6000 ~	Y ~	6000 ~	~	0.000~	0.000~	58.00~	999.00~	10.2~	M60 ~	0.0~	INT ~	- ~	0.00~	0~	TT9030~	6284710	1	TT9030
MTECBF08064G141.25ISO	1.25	M8	=>10	8.00	6.40	14.00	64.00	7	C ~	R ~	71EF07E083383 ~	8000 ~	Y ~	8000 ~	~	0.000~	0.000~	64.00~	999.00~	14.0~	M60 ~	0.0~	INT ~	- ~	0.00~	0~	TT9030~	6284712	1	TT9030
MTECBF 1008G161.5ISO	1.50	M10	=>12	10.00	8.00	16.70	73.00	7	C ~	R ~	71EF07E083383 ~	1000 ~	Y ~	1000 ~	~	0.000~	0.000~	73.00~	999.00~	16.7~	M60 ~	0.0~	INT ~	- ~	0.00~	0~	TT9030~	6284713	1	TT9030
MTECBF12095G201.75ISO	1.75	M12	=>12	12.00	9.50	20.00	84.00	7	C ~	R ~	71EF07E083383 ~	1200 ~	Y ~	1200 ~	~	0.000~	0.000~	84.00~	999.00~	20.0~	M60 ~	0.0~	INT ~	- ~	0.00~	0~	TT9030~	6284714	1	TT9030
