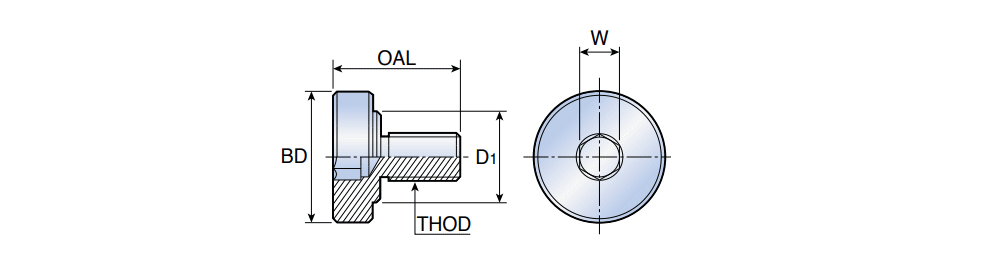

MBA M : Lock screw for FMA

Designation	S1	THOD	BD	D1	OAL	W	GICAT
MBA M8	8.00~	M8x1.25	20.00	15.00	24.00	6	4351161
MBA M10	10.00~	M10x1.5	28.00	18.00	28.00	8	4351162
MBA M12	12.00~	M12x1.75	33.00	23.00	32.00	10	4351163
MBA M16	16.00~	M16x2.0	40.00	23.00	40.00	14	4300458
MBA M20	20.00~	M20x2.5	50.00	27.00	50.00	17	4300459
