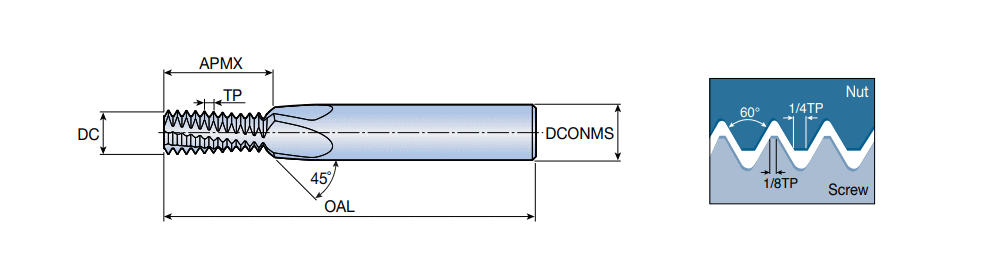

MTECH-ISO : Solid carbide threading end mills for threading and chamfering on hardened steel

Designation	TP	M coarse	M Fine	DCONMS	DC	APMX	OAL	NOF	HAND	ClssID	CCMS		CZCMS	FTDZ	fz (max)	fz (min)	LF	LTA	Shank	THFT	TPI	TTP	TTP_DF2		ZAX	LU	GRDMFG	GICAT	giic	Grade & Vc Click on grade for cutting speed value
MTECH 0604C9 0.8ISO	0.80	M5	=>5.9	6.00	4.00	9.20	58.00	3	R ~	71EF07E083383 ~	6000 ~	X ~	6000 ~	~	0.000~	0.000~	0.00~	22.00~	C ~	~	0.0~	~	~	0.00~	0~	0.0~	TT5515~	6285226	1	TT5515
MTECH 08048D101.0ISO	1.00	M6	=>6.9	8.00	4.80	10.50	64.00	4	R ~	71EF07E083383 ~	8000 ~	X ~	8000 ~	~	0.000~	0.000~	0.00~	28.00~	C ~	~	0.0~	~	~	0.00~	0~	0.0~	TT5515~	6285227	1	TT5515
MTECH 0806D141.25ISO	1.25	M8	=>9.9	8.00	6.00	13.70	64.00	4	R ~	71EF07E083383 ~	8000 ~	X ~	8000 ~	~	0.000~	0.000~	0.00~	28.00~	C ~	~	0.0~	~	~	0.00~	0~	0.0~	TT5515~	6285228	1	TT5515
MTECH12095D201.75ISO	1.75	M12	-	12.00	9.50	20.10	84.00	4	R ~	71EF07E083383 ~	1200 ~	X ~	1200 ~	~	0.000~	0.000~	0.00~	39.00~	C ~	~	0.0~	~	~	0.00~	0~	0.0~	TT5515~	6285229	1	TT5515
