TaeguTec Cutting Tools - Metal Working Tools - Thread Making -

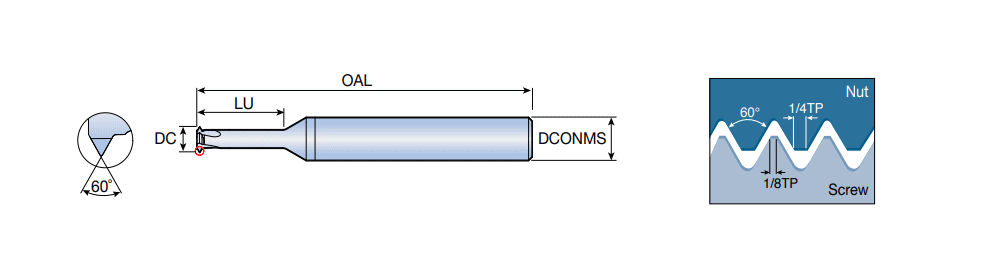

MTECI-ISO : Solid carbide threading end mills with single point cutting edges for small holes

Designation	TP	M coarse	M Fine	DCONMS	DC	APMX	OAL	NOF	HAND	ClssID	CCMS		CZCMS	FTDZ	fz (max)	fz (min)	LF	LTA	Shank	THFT	TPI	TTP	TTP_DF2		ZAX	LU	GRDMFG	GICAT	giic	Grade & Vc Click on grade for cutting speed value
MTECI03007C3 0.25ISO	0.25	M1	-	3.00	0.72	3.60	39.00	3	R ~	71EF07E083383 ~	3000 ~	X ~	3000 ~	~	0.000~	0.000~	0.00~	24.00~	C ~	~	0.0~	~	~	0.00~	0~	0.0~	TT5515~	6274420	1	TT5515
MTECI03009C4 0.25ISO	0.25	M1.2	M1.4,M1.6	3.00	0.90	4.30	39.00	3	R ~	71EF07E083383 ~	3000 ~	X ~	3000 ~	~	0.000~	0.000~	0.00~	16.75~	C ~	~	0.0~	~	~	0.00~	0~	0.0~	TT5515~	6274418	1	TT5515
MTECI03011C5 0.3ISO	0.30	M1.4	-	3.00	1.05	5.00	39.00	3	R ~	71EF07E083383 ~	3000 ~	X ~	3000 ~	~	0.000~	0.000~	0.00~	23.00~	C ~	~	0.0~	~	~	0.00~	0~	0.0~	TT5515~	6274423	1	TT5515
MTECI03012C6 0.35ISO	0.35	M1.6	M2,M2.2	3.00	1.20	5.70	39.00	3	R ~	71EF07E083383 ~	3000 ~	X ~	3000 ~	~	0.000~	0.000~	0.00~	16.64~	C ~	~	0.0~	~	~	0.00~	0~	0.0~	TT5515~	6274424	1	TT5515
MTECI03016C7 0.4ISO	0.40	M2	-	3.00	1.55	7.10	39.00	3	R ~	71EF07E083383 ~	3000 ~	X ~	3000 ~	~	0.000~	0.000~	0.00~	19.28~	C ~	~	0.0~	~	~	0.00~	0~	0.0~	TT5515~	6274425	1	TT5515
MTECI03024C10 0.5ISO	0.50	M3	M3.5,M4	3.00	2.37	10.60	39.00	3	R ~	71EF07E083383 ~	3000 ~	X ~	3000 ~	~	0.000~	0.000~	0.00~	22.39~	C ~	~	0.0~	~	~	0.00~	0~	0.0~	TT5515~	6274426	1	TT5515
